Siemens 3RV20314KA10 Motor Protection Circuit Breaker, 690 VAC, 62 to 73 A, 4 kA Interrupt, 3 Poles, Magnetic Trip

Selected Siemens 3RV20314WA10

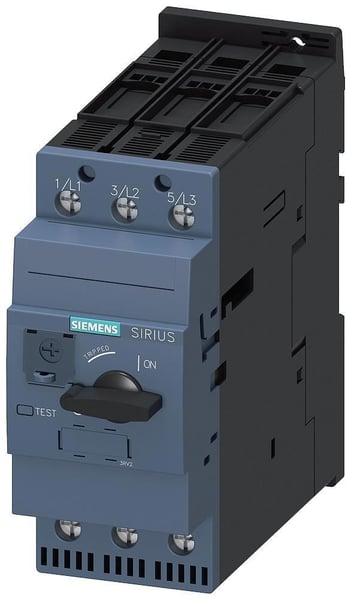

Siemens 3RV20314WA10

Documents

Short Description

The SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting three-phase motors of up to 55/45 kW at 400 VAC and for other loads with rated currents of up to 100 A.

Features

  • Class 10 trip

Specification

Dimensions
140 mm H x 55 mm W x 149 mm D
Frame
S2
Mounting Type
DIN Rail
Amperage Rating
62 to 73 A
Wire Size
18 to 2 AWG
Power Rating
30 kW
Trip Range
949 A
Series
3RV2
Temperature Rating
-20 to 60 deg C
Enclosure Type
IP20
Phase
3
Frequency Rating
50 to 60 Hz
Trip Type
Magnetic
Number Of Poles
3
Connection Type
Screw
Voltage Rating
690 VAC
Interrupt Rating
4 kA
