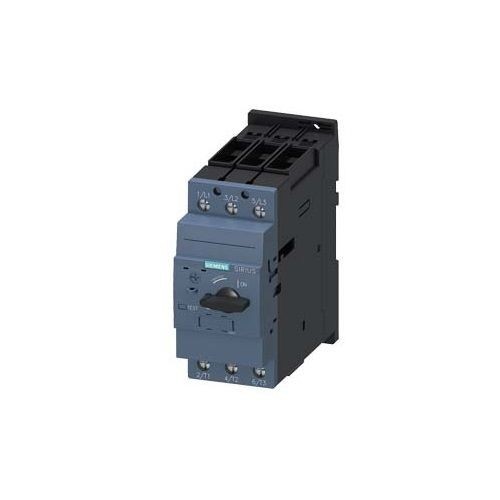

Siemens 3RV20314VA10 Motor Protection Circuit Breaker, 690 VAC, 35 to 45 A, 4 kA Interrupt, 3 Poles, Magnetic Trip

Selected 3RV20314VA10Siemens 3RV20314VA10 Motor Protection Circuit Breaker, 690 VAC, 35 to 45 A, 4 kA Interrupt, 3 Poles, Magnetic Trip
3RV20314VA10Siemens 3RV20314VA10 Motor Protection Circuit Breaker, 690 VAC, 35 to 45 A, 4 kA Interrupt, 3 Poles, Magnetic Trip

Short Description

The SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting three-phase motors of up to 55/45 kW at 400 VAC and for other loads with rated currents of up to 100 A.

Features

  • Class 10 trip

Specification

Frame
S2
Frequency Rating
50 to 60 Hz
Interrupt Rating
4 kA
Mounting Type
DIN Rail
Number Of Poles
3
Phase
3
Power Rating
37 kW
Series
3RV2
Temperature Rating
-20 to 60 deg C
Trip Range
650 A
Trip Type
Magnetic
Voltage Rating
690 VAC
Wire Size
18 to 3 AWG
Application
Motor and System Protection Applications
Standard & Approvals
CSA Certified, CE Certified, IEC Certified, UL Listed
Dimensions
140 mm H x 55 mm W x 149 mm D
Connection Type
Screw
EANUCC13
4011209945692
Enclosure Type
IP20
Amperage Rating
35 to 45 A
