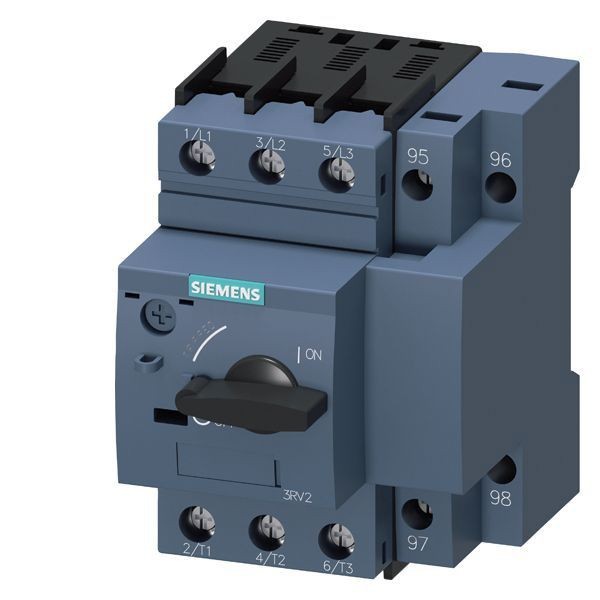

Siemens 3RV21214DA10 Motor Protection Circuit Breaker, 690 VAC, 20 to 25 A, 2 kA Interrupt, 3 Poles, Magnetic Trip

Selected 3RV21214DA10Siemens 3RV21214DA10 Motor Protection Circuit Breaker, 690 VAC, 20 to 25 A, 2 kA Interrupt, 3 Poles, Magnetic Trip
3RV21214DA10Siemens 3RV21214DA10 Motor Protection Circuit Breaker, 690 VAC, 20 to 25 A, 2 kA Interrupt, 3 Poles, Magnetic Trip

Documents

Short Description

The SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting three-phase motors of up to 55/45 kW at 400 VAC and for other loads with rated currents of up to 100 A.

Features

  • Class 10 trip

Specification

Frame
S0
Frequency Rating
50 to 60 Hz
Interrupt Rating
2 kA
Mounting Type
DIN Rail
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=n2AKmVUVH7Y
Amperage Rating
20 to 25 A
Catalog ID
SIE3RV21214DA10
Connection Type
Screw
Dimensions
97 mm H x 65 mm W x 96 mm D
Enclosure Type
IP20
Phase
3
Power Rating
22 kW
Series
3RV2
Temperature Rating
-20 to 60 deg C
Trip Range
325 A
Trip Type
Magnetic
Voltage Rating
690 VAC
Wire Size
16 to 12 AWG
Application
For system and motor protection with overload relay function
Standard & Approvals
CSA Certified, CCC Certified, CE Certified, IEC Certified, UL Listed
EANUCC13
4011209716445
