Siemens 3RV28111ED10 Motor Protection Circuit Breaker, 690 V AC, 4 A, 4 kA Interrupt, 3 Poles, Magnetic Trip

Selected Siemens 3RV27110AD10

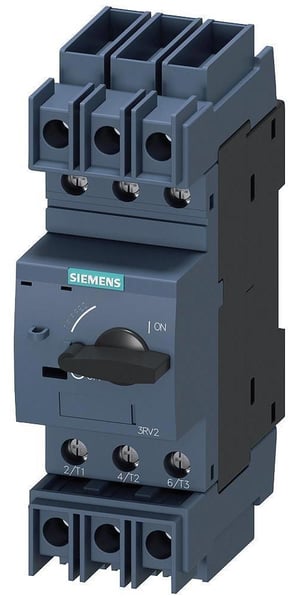

Siemens 3RV27110AD10

Documents

Short Description

The SIRIUS 3RV2 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/circuit breakers are used for switching and protecting three-phase motors of up to 55/45 kW at 400 VAC and for other loads with rated currents of up to 100 A.

Specification

Enclosure Type
IP20
Temperature Rating
-20 to 60 deg C
Number Of Poles
3
Amperage Rating
4 A
Phase
3
Series
3RV2
Frequency Rating
50 to 60 Hz
Connection Type
Screw
Voltage Rating
690 V AC
Frame
S00
Interrupt Rating
4 kA
Trip Range
82 A
Trip Type
Magnetic
Dimensions
144 mm H x 45 mm W x 97 mm D
Mounting Type
DIN Rail
Wire Size
14 AWG
Power Rating
3 kW
