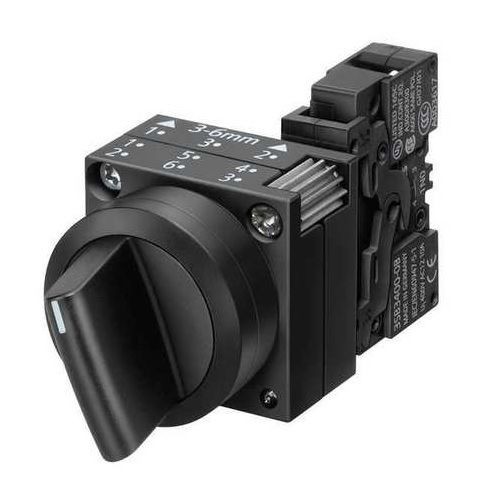

Siemens 3SB3601-2PA11 Non-Illuminated Selector Switch, 22 mm, 1NC-1NO Contact, Round Short Lever Operator, Black

Selected Siemens 3SB3601-2PA11 Non-Illuminated Selector Switch, 22 mm, 1NC-1NO Contact, Round Short Lever Operator, Black
Siemens 3SB3601-2PA11 Non-Illuminated Selector Switch, 22 mm, 1NC-1NO Contact, Round Short Lever Operator, Black

Documents

Short Description

The 3SB3 series is a modular range of commanding and signaling devices for front plate mounting and rear conductor connection. As an alternative, individual elements can also be supplied for use on printed circuit boards. Complete units are offered for the most commonly used applications.

Features

  • The devices are of modern industrial design and can be mounted rapidly by a single person
  • The metal version with a high degree of protection according to IP67 and NEMA 4 is available for the world market
  • 6 A/3 A at 24/400 VAC AC-15, 10 A/1 A at 24/230 VDC DC-12
  • With holder

Specification

Material
Metal
Mounting Type
Surface
Number of Positions
2
Operator Type
Round Short Lever
Size
22 mm
Color
Black
Connection Type
Thread
Contact Configuration
1NC-1NO
Contact Mode
Maintained
Enclosure Type
IP67
Environmental Conditions
-25 to 70 deg C
Actuator
Rotary
Standard & Approvals
CCC Certified, CE Marked, CSA certified, EAC Rated RoHS Complaint
Throw
50 deg Left/Right
Series
3SB3
Bezel/Housing
Metallic
Contact Rating
3/6 A at 24/400 VAC/1/10 A at 24/230 VDC
