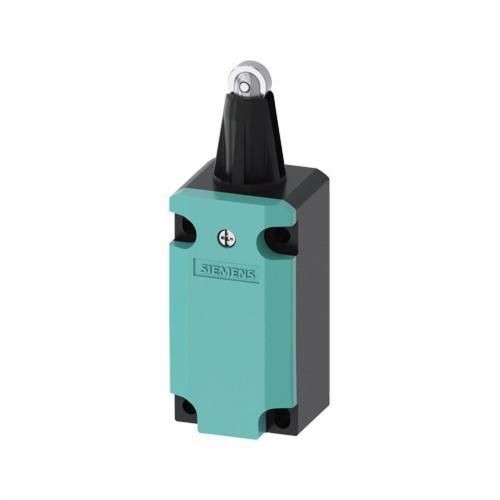

Siemens 3SE51120CD02 Standard Limit Switch, 400 VAC, 6 A, Roller Plunger Actuator, 1NC-1NO Contact, 3 Poles
Siemens 3SE51120CD02 Standard Limit Switch, 400 VAC, 6 A, Roller Plunger Actuator, 1NC-1NO Contact, 3 Poles
SKU: SIE3SE51120CD02
Manufacturer Part Number: 3SE51120CD02
EAN: 4011209692152
UPC: 754554953939
Documents
Features
- The modular design of the product range allows a number of versions with a smaller number of bearing types for enclosures and operating mechanisms
- All actuators can be turned around the axis in increments of 22.5 deg
- Stainless steel head
- All enclosure sizes now also including the small enclosure 31 mm W are optionally available with an LED signaling indicator
- All enclosure versions have an integrated chlorinated rubber diaphragm (high functional safety in cold and aggressive environments)
- All contact blocks are replaceable
- With the standard position switches, mechanical positions of moved machine parts are converted into electrical signals
- Through their modular and uniform design and large number of versions, the devices can meet practically all requirements in industry
- The devices are suitable for use in any climate
- With positive opening
- Rounded and roller plungers according to EN 50041 with 3 mm overtravel (total travel 9 mm) for greater tolerance when switching
- 100000 cycles electrical, 15000000 cycles mechanical switching
- 1 x (M20 x 1.5) cable entry
- 400 VAC insulation voltage
- 6 A/4 A at 24/400 VAC AC-15, 3 A/0.1 A at 24/400 VAC DC-13
Specification
| Material | Metal |
|---|---|
| Mounting Type | Threaded |
| Number Of Poles | 3 |
| Operating Cycles | 100000 Cycles |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Connection Type | Thread |
| Contact Configuration | 1NC-1NO |
| Type | Standard |
| Voltage Rating | 400 VAC |
| Standard & Approvals | CCC Certified, CE Certified, CSA Certified, EAC Certified, EN 50041, UL Listed |
| Amperage Rating | 6 A |
| Finish | Cathodic Immersion Coated |
| Enclosure Type | IP66/IP67 |
| Contact Rating | 6/4 A at 24/400 VAC/3/0.1 A at 24/400 VAC |
| Closed Contact Resistance | 5 GOhm |
| Catalog ID | SIE3SE51120CD02 |
| Actuator | Roller Plunger |
| Action | Snap |
| Operating Temperature | -25 to 85 deg C |
| Size | 78 mm H x 40 mm W x 38 mm D |
| EANUCC13 | 4011209692152 |
