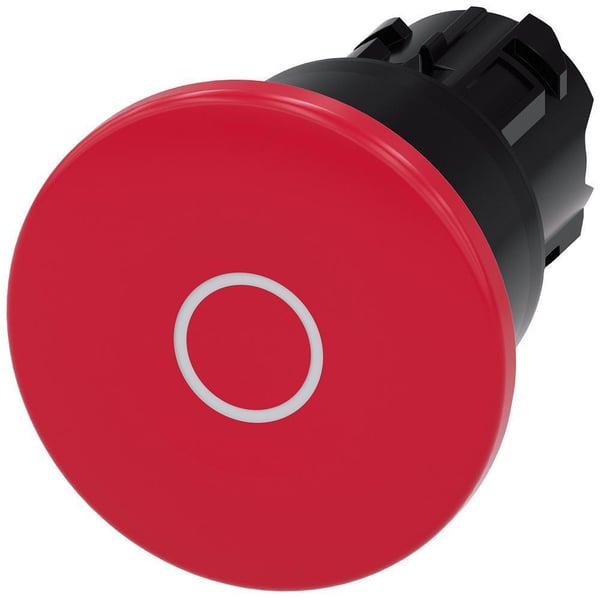

Siemens SIRIUS ACT 3SU10001BA200AD0 Round Non-Illuminated Push-Pull Operator, 22 mm, 2 Positions, Black/Red

Selected Siemens 3SU10001BA200AD0
Siemens 3SU10001BA200AD0

Documents

Short Description

SIRIUS ACT is a modular system of pushbuttons and indicator lights for front plate mounting and rear mounted electrical modules. Thanks to SIRIUS ACT with PROFINET, pushbuttons and indicator lights can be connected directly via PROFINET to the controller and HMI devices including with safety functions. Engineering and commissioning are simplified no end by the TIA portal.

Features

  • Direct connection of the enclosure to AS-interface or IO-Link
  • Direct connection in the control cabinet to PROFINET, IO-Link or AS-interface
  • Can be integrated easily via TIA portal
  • Self-holding function of the actuator when mounting
  • Twist prevention integrated into patented holder design
  • Stackable contact modules
  • Self-explanatory and fast installation using one hand
  • Components can be mounted with holder removed
  • Media resistance (chemicals) thanks to solid stainless steel and high grade plastics
  • Mechanical endurance of 10 x 10^6 operating cycles
  • Reliable, friction locked fixing with just one screw
  • Design stability according to use
  • Simple geometry for mounting holes
  • O marking
  • Without module and holder

Specification

Temperature Rating
-25 to 70 deg C
Color
Black/Red
Material
Plastic
Type
Round
Series
3SU10
Number of Positions
2
Operator Type
Latching/Pull-Unlatch/Mushroom Head Pushbutton
Enclosure Type
NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69/IP69K
Bezel/Housing
Plastic
Size
22 mm
Mounting Type
Front Plate
