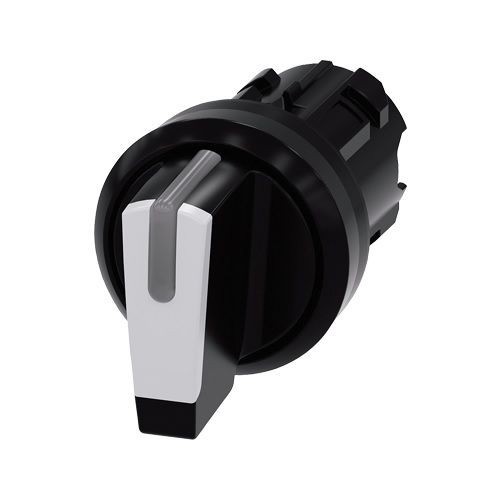

SIRIUS 3SU10022BL600AA0 3SU1 Selector Switch, 32.3 mm Dia x 54.2 mm L, Maintained Operator, Black
SIRIUS 3SU10022BL600AA0 3SU1 Selector Switch, 32.3 mm Dia x 54.2 mm L, Maintained Operator, Black
SKU: SIE3SU10022BL600AA0
Manufacturer Part Number: 3SU10022BL600AA0
EAN: 4011209955370
UPC: 804766064401
Documents
Features
- 1000000 switching cycles
- White actuating element
- 22.3 mm Dia mounting
- 0.4 mm positive tolerance of installation diameter
- 28.8 mm H mounting
- 32.3 mm W x 25.4 mm D installation
- Round installation opening
- Black front ring
- 2 x 45 deg actuating angle
- 800 Hz maximum frequency
- Can be illuminated
Specification
| Material | Plastic |
|---|---|
| Series | 3SU1 |
| Size | 32.3 mm Dia x 54.2 mm L |
| Standard & Approvals | CE, CSA Certified, UL Listed |
| Color | Black |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12/IP66/67/69 |
| Environmental Conditions | -25 to 70 deg C Operating Temperature, -40 to 80 deg C Storage Temperature, 10 to 500 Hz Vibration Resistance |
| Throw | 45 deg CW/ACW |
| Operator Type | Maintained |
| Number of Positions | 3 |
| EANUCC13 | 4011209955370 |
| Actuator | Short Handle |
