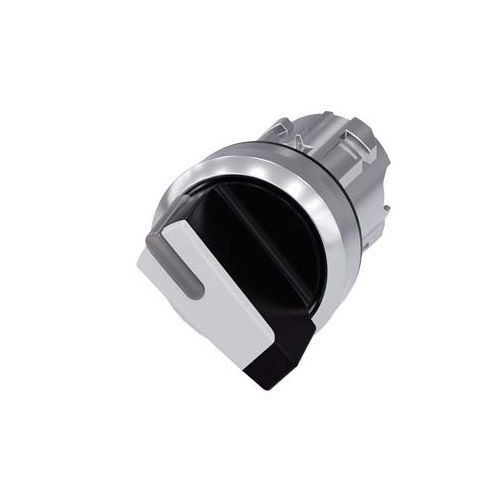

Siemens 3SU10522BF600AA0 3SU1 Illuminated Selector Switch, 22 mm, Short Lever Operator, White
Siemens 3SU10522BF600AA0 3SU1 Illuminated Selector Switch, 22 mm, Short Lever Operator, White
SKU: SIE3SU10522BF600AA0
Manufacturer Part Number: 3SU10522BF600AA0
EAN: 4011209969650
UPC: 804766069253
Features
- Plastic actuating element
- 32.3 mm OD
- 90 deg clockwise actuating angle
- Silver metal, high gloss front ring
- Sinusoidal half wave 50 g/11 ms shock resistance
- 10 to 500 Hz frequency rating, 5 g vibration resistance
- 1800 1/h maximum operating frequency
- -40 to 80 deg C storage
- 32.3 mm H x 32.3 mm W
- Round installation opening
- 22.3 mm Dia x 28.8 mm H mounting
- 0.4 mm Dia x 32.3 mm W x 25.4 mm D installation
Specification
| Number of Positions | 2 |
|---|---|
| Operator Type | Short Lever |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Bezel/Housing | Metal |
| Catalog ID | SIE3SU10522BF600AA0 |
| Color | White |
| Environmental Conditions | -25 to 70 deg C Temperature |
| Finish | Shiny |
| Series | 3SU1 |
| Standard & Approvals | UL Listed, CE, CSA Certified |
| Throw | 90 deg Left/Right |
| Enclosure Type | NEMA 1/2/3/3R/4/4X/12 |
| Contact Mode | Maintained |
| Actuator | Short Handle |
| Video | https://www.youtube.com/watch?v=964N3QfD4fc |
| Size | 22 mm |
| EANUCC13 | 4011209969650 |
