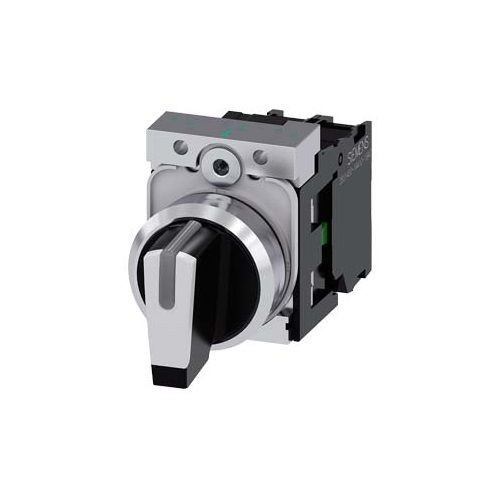

Siemens 3SU11502BL601NA0 Non-Illuminated Selector Switch With Holder, 22 mm, 2NO-2NC Contact, Round Short Lever Operator, Black
Siemens 3SU11502BL601NA0 Non-Illuminated Selector Switch With Holder, 22 mm, 2NO-2NC Contact, Round Short Lever Operator, Black
SKU: SIE3SU11502BL601NA0
Manufacturer Part Number: 3SU11502BL601NA0
EAN: 4011209956513
UPC: 804766072260
Features
- I-O-II latching
- Manner of function of the actuating element - latching, 2 x 45 deg (10:30 h/12 h/13:30 h)
- Design of the operating mechanism - selector switch, short black handle
- Product extension optional Light source
- Design of the contact of auxiliary contacts: silver alloy
- 32.3 mm OD of the actuating element
- Round shape of the installation opening
- Plastic actuating element, metal front ring and holder
- 45 deg actuating angle (cw), 45 deg actuating angle (acw)
- 50/60 Hz frequency rating
- Front plate mount
Specification
| Material | Metal |
|---|---|
| Mounting Type | Surface |
| Number of Positions | 3 |
| Operator Type | Round Short Lever |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=HeBkQtgY3pU |
| Catalog ID | SIE3SU11502BL601NA0 |
| Color | Black |
| Connection Type | Thread |
| Contact Configuration | 2NO-2NC |
| Contact Mode | Maintained |
| Contact Rating | 10 A at 500 VAC/VDC |
| Enclosure Type | IP20/66/67/69/69K |
| Environmental Conditions | -25 to 70 deg C |
| Size | 22 mm |
| Throw | 45 deg |
| Standard & Approvals | UL Listed, CSA Certified, CE Certified, CCC Certified, EAC Standard |
| EANUCC13 | 4011209956513 |
