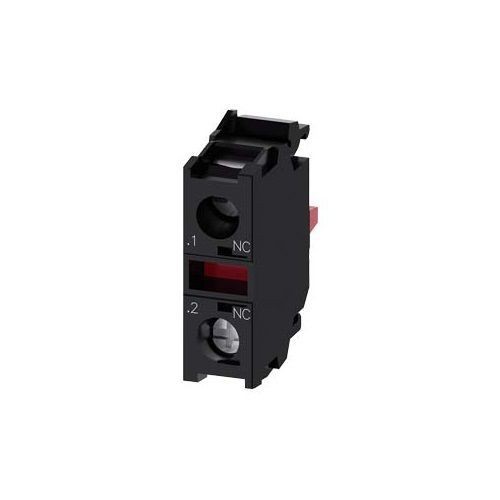

SIRIUS 3SU14001AA101CA0 Contact Module With Contact Element, 1NC Contact, 10 A at 5 to 500 VAC/VDC Contact, For Use With Front Plate Mounting, Silver Alloy Contact
SIRIUS 3SU14001AA101CA0 Contact Module With Contact Element, 1NC Contact, 10 A at 5 to 500 VAC/VDC Contact, For Use With Front Plate Mounting, Silver Alloy Contact
SKU: SIE3SU14001AA101CA0
Manufacturer Part Number: 3SU14001AA101CA0
EAN: 4011209950887
UPC: 804766073274
Documents
Features
- 500 VAC insulation voltage rated value
- 6 kV surge voltage resistance rated value
- 3600 1/h maximum operating frequency
- 10 A thermal current
- -25 to 70 deg C operation ambient
- 0.8 to 0.9 N-m tightening torque
Specification
| Mounting | Front Plate |
|---|---|
| Minimum Order Qty | 5 |
| Order Interval | 5 |
| Video | https://www.youtube.com/watch?v=ussznbJs-uY |
| Catalog ID | SIE3SU14001AA101CA0 |
| Contact Configuration | 1NC |
| Contact Material | Silver Alloy |
| Contact Rating | 10 A at 5 to 500 VAC/VDC |
| Dimensions | 33.2 mm H x 9.8 mm W x 22.7 mm D |
| Enclosure | IP20/IP40 |
| Suitable For Use With | Front Plate Mounting |
| Terminal Type | Screw |
| Standard & Approvals | UL Listed, CE Certified, CSA Certified |
| EANUCC13 | 4011209950887 |
