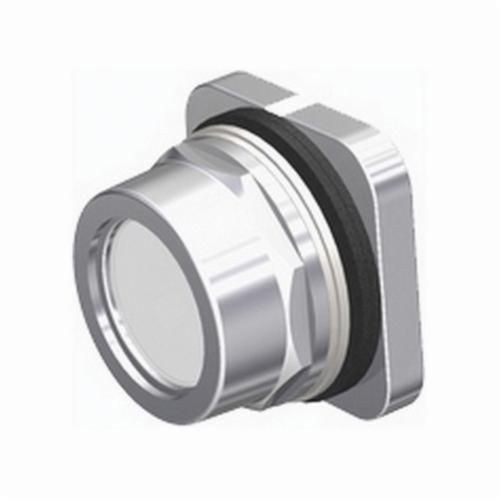

Siemens 52PA8 Command 52 Non-Illuminated Pushbutton Operator, 30 mm, 2 Positions
Siemens 52PA8 Command 52 Non-Illuminated Pushbutton Operator, 30 mm, 2 Positions
SKU: SIE52PA8
Manufacturer Part Number: 52PA8
UPC: 783087097032
Features
- Industrial control operators are durable 1-piece castings
- Heavy duty plastic buttons resist oils and corrosion, silver contacts carry heavy duty ratings
- The operator base consists of a durable, 1-piece casting equipped with a heavy duty actuator with a stainless steel spring, a neoprene actuator sealing ring to prevent oil and dust from penetrating to the contact blocks, a neoprene gasket to seal operator mounting hole and a chrome plated lock nut
- Octagonal mounting nuts
- Heavy duty rated NEMA A600 contacts
- Positive indexing selectors
- Bifurcated movable contacts
- Attractive chrome plating
- Touch safe terminals
- Oil tight and corrosion-resistant
- 5000000 operating cycles
Specification
| Material | Metal |
|---|---|
| Mounting Type | Lock Nut |
| Number of Positions | 2 |
| Operator Type | Flush Button |
| Series | Command 52 |
| Size | 30 mm |
| Temperature Rating | -35 to 70 deg C |
| Terminal Type | Threaded |
| Voltage Rating | 600 VAC |
| Application | For use with magnetic controllers to control the starting and stopping of motors |
| Standard & Approvals | CSA File No. LR6535, UL File No. E22655 |
| Bezel/Housing | Die Cast Zinc |
| Contact Mode | Momentary |
| Finish | Polished Chrome |
| Enclosure Type | NEMA 1/3/3R/4/4X/12/13/IP66 |
| Type | Non-Illuminated |
| Terminal | Screw |
