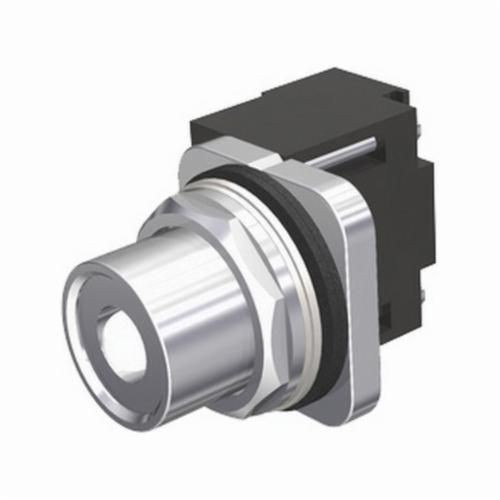

Siemens 52SA7AGN Class 52 Heavy Duty Illuminated Selector Switch, 30 mm, Short Lever Operator
Siemens 52SA7AGN Class 52 Heavy Duty Illuminated Selector Switch, 30 mm, Short Lever Operator
SKU: SIE52SA7AGN
Manufacturer Part Number: 52SA7AGN
UPC: 783087100367
Short Description
Features
- Allowing for quick delivery, multiple distributor options and a full product line for the end user
- Lighting modules, operators and lens can be ordered fully assembled or independently depending on your applications
- Delivering traditional incandescent lights, energy saving LEDs, and energy saving extra bright cluster LEDs
- New ribbed concentric lens providing improved lighting distribution and aesthetic appeal
- Less mounting space-making Siemens new 30 mm smaller than ever
- Silver contacts with gold flashing improving contact reliability of all our contact blocks
- 120 VAC full voltage operation
- Lens not included
- Lamp number 755
- Open type devices are designed for mounting in sheet metal enclosures or for mounting on flush plates
Specification
| Lamp Type | Incandescent |
|---|---|
| Material | Metal |
| Mounting Type | Lock Nut |
| Number of Positions | 2 |
| Operator Type | Short Lever |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Cam Code | A |
| Catalog ID | SIE52SA7AGN |
| Connection Type | Locknut |
| Contact Mode | Maintained |
| Enclosure Type | NEMA 1/3/3R/4/4X/12/13 |
| Environmental Conditions | -35 to 70 deg C Temperature |
| Finish | Polished Chrome |
| Size | 30 mm |
| Throw | Left to Right |
| Type | Class 52 Heavy Duty |
| Application | For use with magnetic controllers to control the starting and stopping of motors |
| Standard & Approvals | CSA Certified, UL File No. E22655 |
