Siemens Sentron™ 5SY4206-7 Miniature Supplementary Protector, 480 VAC, 6 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
Siemens Sentron™ 5SY4206-7 Miniature Supplementary Protector, 480 VAC, 6 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
SKU: SIE5SY42067
Manufacturer Part Number: 5SY4206-7
EAN: 4001869181622
UPC: 754554863450
Documents
Features
- Excellent current limiting and selectivity characteristics
- Terminals offer protection against contact with fingers or the back of the hand according to the German accident prevention regulations VBG 4/BGV A2
- Combined terminals enable a simultaneous connection of busbars and feeder cables
- Uniform components that can be quickly mounted individually
- The handle locking device virtually prevents any unauthorized operation of the handle
- Rapid connection of the feeder cable in front of the busbar
- Identical terminals at both sides for an optional infeed from the top or the bottom
- Identical wire screw-on line and load side
- No tool required for mounting or dismounting
- Supports a fast and comfortable removal from the assembly
- Trip indication
- Type C characteristic is for general device protection in control circuits
- 35 mm DIN-rail mounting
- 5 to 10 times magnetic trip point rating
- 1.13 to 1.45 thermal trip point protector rating
Specification
| Frequency Rating | 50 Hz |
|---|---|
| Interrupt Rating | 10 kA |
| Mounting Type | DIN Rail |
| Number Of Poles | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Connection Type | Line/Load Side/Screw |
| Enclosure Type | IP20 |
| Trip Type | Thermal/Magnetic |
| Wire Size | 14 to 4 AWG |
| Standard & Approvals | CE Marked, cULus Listed, CSA 22.2 No. 235, IEC/EN 60898, IEC/EN 60947-2, UL 1077 File No. E116386 |
| Amperage Rating | 6 A |
| Type | Miniature |

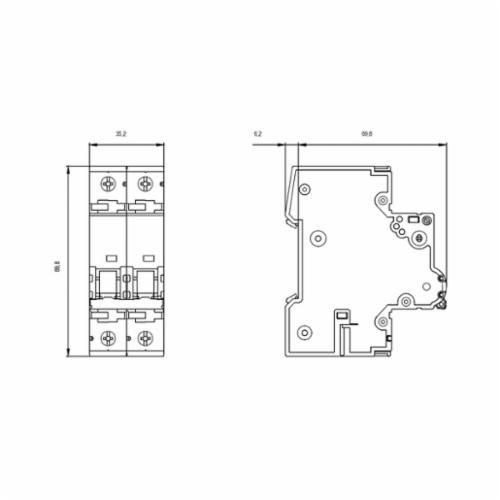

| Dimensions | 90 mm H x 36 mm W x 70 mm D |
| Frame | 5SY4 |
| EANUCC13 | 4001869181622 |
| Application | Supplementary Protection Applications |
| Voltage Rating | 480 VAC |
| Trip Range | 6.78 to 8.7 A |
| Temperature Rating | -25 to 45 deg C |
| Phase | ph |
| Catalog ID | SIE5SY42067 |
