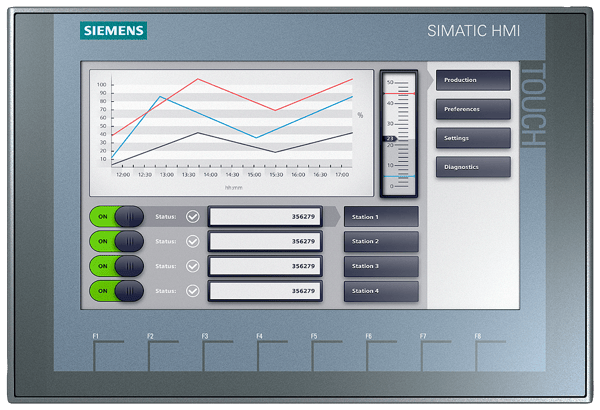

SIMATIC 6AV21232JB030AX0 KTP900 HMI Basic Panel, 111.7 mm H x 198 mm W TFT Display, 8 Keys, Ethernet
SIMATIC 6AV21232JB030AX0 KTP900 HMI Basic Panel, 111.7 mm H x 198 mm W TFT Display, 8 Keys, Ethernet
SKU: SIE6AV21232JB030AX0
Manufacturer Part Number: 6AV21232JB030AX0
EAN: 4034106029234
UPC: 887621830274
Documents
Features
- 9 in widescreen display, LED backlighting
- 65536-colors
- Configurable from WINCC BASIC V13/ STEP7 BASIC V13
- 24 VDC supply voltage
- 230 mA current consumption
- 5.5 W active power input
- Arm processor
- IP65/IP20 degree of protection
- -20 to 60 deg C storage
- 90% no condensation maximum relative humidity
- Contains open source software which is provided free of charge
- Key and touch operation
Specification
| Material | Plastic |
|---|---|
| Memory | 10 MB |
| Number of Keys | 8 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | SIE6AV21232JB030AX0 |
| Communication Ports | Ethernet |
| Dimensions | 182 mm H x 267 mm W x 55 mm D |
| Display Resolution | 800 x 480 pixel |
| Display Size | 111.7 mm H x 198 mm W |
| Display Type | TFT |
| Series | KTP900 |
| Temperature Rating | 0 to 50 deg C |
| Type | HMI |
| Standard & Approvals | CE Certified, cULus Listed, KC/RCM Approved |
| EANUCC13 | 4034106029234 |
