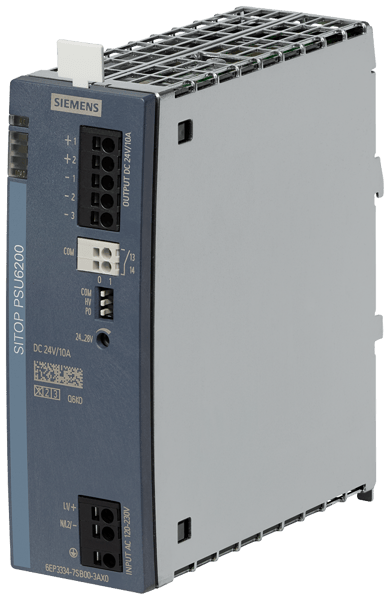

Siemens SITOP 6EP33347SB003AX0 Power Supply, 120 to 230 VAC Input, 24 VDC Output, 240 W Power Rating, 2.2 to 1.2 A Input/0 to 10 A Output
Siemens SITOP 6EP33347SB003AX0 Power Supply, 120 to 230 VAC Input, 24 VDC Output, 240 W Power Rating, 2.2 to 1.2 A Input/0 to 10 A Output
SKU: SIE6EP33347SB003AX0
Manufacturer Part Number: 6EP33347SB003AX0
EAN: 4025515155188
UPC: 804766817052
Short Description
Features
- Wide-range input that allows it to be connected to almost any 1-phase line supply around the world or to a DC power source
- The output voltage can be set in the range 12 to 15.5 V or 24 to 28 V
- Brief overload capability of 150 % for 5 s/min (extra power)
- Continuous overload capability of 120 % up to an ambient temperature of 45 deg C
- Integrated signaling contact for "12 V OK" or "24 V OK"
- Push-in connections facilitate fast wiring
- Diagnostic monitor with utilization and service life display using LEDs
- Diagnostics interface to connect to the automation system via only one digital PLC input
- Ambient temperature -25 to 70 deg C
- To increase the system availability, these reliable power supplies can be expanded using SITOP supplementary modules (redundancy module, selectivity module, buffer module), as well as SITOP DC-UPS modules
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Input Voltage | 120 to 230 VAC |
| Output Voltage | 24 VDC |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Series | PSU6200 |
| Standard & Approvals | CB Approved, CE Certified, CSA C22.2 No. 107.1/C22.2 No. 60950-1, cCSAus Certified, cULus E197259, REACH Article 33, UL 60950-1/508, WEEE 2012/19/EU |
| Depth | 125 mm |
| Catalog ID | SIE6EP33347SB003AX0 |
| Amperage Rating | 2.2 to 1.2 A Input/0 to 10 A Output |
| Height | 135 mm |
| EANUCC13 | 4025515155188 |
| Width | 45 mm |
| Power Rating | 240 W |
