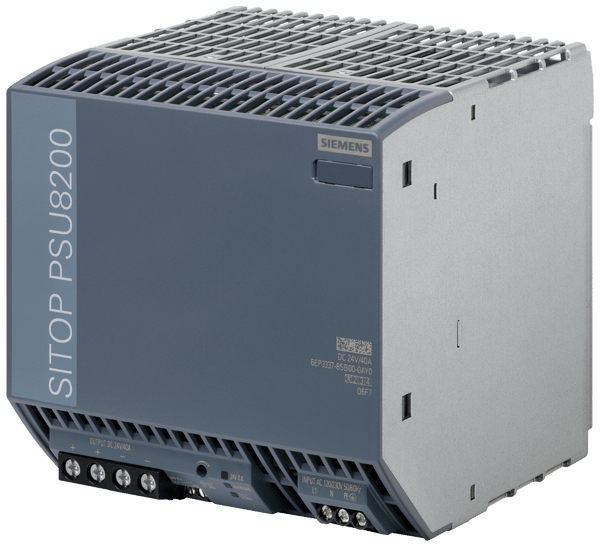

Siemens 6EP33378SB000AY0 SITOP PSU8200 Stabilized Power Supply, 120 to 230 VAC Input, 24 VDC Output, 9/15 A Input, 40 A Output

Selected 6EP33378SB000AY0Siemens 6EP33378SB000AY0 SITOP PSU8200 Stabilized Power Supply, 120 to 230 VAC Input, 24 VDC Output, 9/15 A Input, 40 A Output
6EP33378SB000AY0Siemens 6EP33378SB000AY0 SITOP PSU8200 Stabilized Power Supply, 120 to 230 VAC Input, 24 VDC Output, 9/15 A Input, 40 A Output

Documents

Specification

Input Current
9/15 A
Input Voltage
120 to 230 VAC
Output Current
40 A
Output Voltage
24 VDC
Power Dissipation
82 W
Powering Capacity
960 W
Series
SITOP PSU8200
Specifications
50 to 60 Hz, 92% Efficiency, IP20, Screw Terminal
Temperature Rating
-25 to 70 deg C
Standard & Approvals
ABS Approved, ATEX (EX) II 3G Ex nA nC IIC T3, CB Approved, cCSAus Certified, CE Certified, Class I, Division 2, Group A/B/C/D/T3, CSA C22.2 File No. 107.1, CSA C22.2 File No. 60950-1, cULus File No. E197259, cULus File No. E330455, DNV-GL Approved, EN 50178, EN 55022 Class B, EN 60950-1, EN 61000-6-2, IECEx Ex nA nC IIC T3 Gc, UL 60950-1/508, WEEE (2012/19/EU)
Dimensions
145 mm W x 150 mm D x 145 mm H
EANUCC13
4025515154747
