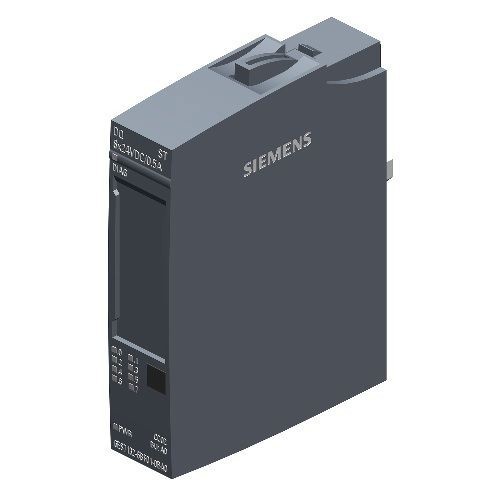

Siemens 6ES71326BF010BA0 Digital Output Module, 8 Outputs
Siemens 6ES71326BF010BA0 Digital Output Module, 8 Outputs
SKU: SIE6ES71326BF010BA0
Manufacturer Part Number: 6ES71326BF010BA0
EAN: 4047623408703
UPC: 804766529023
Specification
| Number of Outputs | 8 |
|---|---|
| Temperature Rating | -30 to 50 deg C Vertical, -30 to 60 deg C Horizontal |
| Voltage Rating | 24 VDC |
| Standard & Approvals | WEEE (2012/19/EU) |
| Amperage Rating | 0.5 A |
| Dimensions | 73 mm H x 15 mm W x 58 mm D |
| Application | For BU type A0, color code CC02, substitute value output, module diagnostics for short circuit to L+ and ground, wire break, supply voltage and ET 200SP input/output system |
| EANUCC13 | 4047623408703 |
