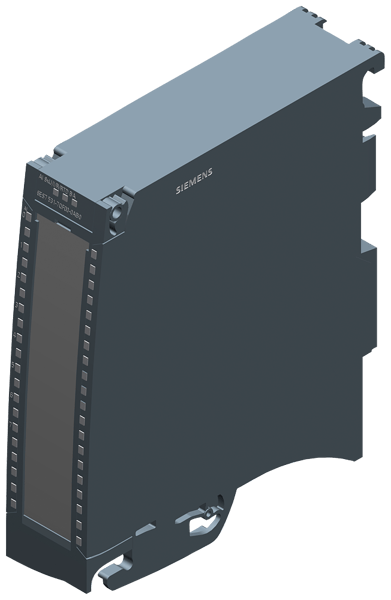

Siemens SIMATIC 6ES75317QF000AB0 S7-1500 Analog Input Module, 8 Inputs, 16 bit Resolution, 0.5 % Accuracy
Siemens SIMATIC 6ES75317QF000AB0 S7-1500 Analog Input Module, 8 Inputs, 16 bit Resolution, 0.5 % Accuracy
SKU: SIE6ES75317QF000AB0
Manufacturer Part Number: 6ES75317QF000AB0
EAN: 4047623410423
UPC: 804766825989
Documents
Features
- For the connection of analog sensors without additional amplifiers
- Even solves more complex automation tasks
- 60 deg C maximum horizontal installation, 40 deg C maximum vertical installation
- Signal range- 1 to 5 V at 10 MOhm, -1 to 1 V at 10 MOhm, -10 to 10 V at 10 MOhm, -5 to 5 V at 10 MOhm, -50 to 50 mV at 10 MOhm, -500 to 500 mV at 10 MOhm, 0 to 20 mA at 25 Ohm, -20 to 20 mA at 25 Ohm, 4 to 20 mA at 25 Ohm
Specification
| Resolution | 16 bit |
|---|---|
| Series | S7-1500 |
| Signal Range | 1 to 5 V at 10 MOhm, -1 to 1 V at 10 MOhm, -10 to 10 V at 10 Mohm |
| Temperature Rating | 0 to 60 deg C |
| Terminal Type | Screw/Push-In Front Connector |
| Voltage Rating | 4 VDC |
| Standard & Approvals | REACH Article No. 33, WEEE (2012/19/EU) |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 40 mA |
| Catalog ID | SIE6ES75317QF000AB0 |
| Conversion Rate | 10/24/27/107 ms |
| Dimensions | 35 mm W x 129 mm D x 147 mm H |
| Number of Inputs | 8 |
| Includes | Infeed Element, Shield Bracket, Shield Terminal, Labeling Strips, U-Connector and Printed Front Door |
| EANUCC13 | 4047623410423 |
| Accuracy | 0.005 |
