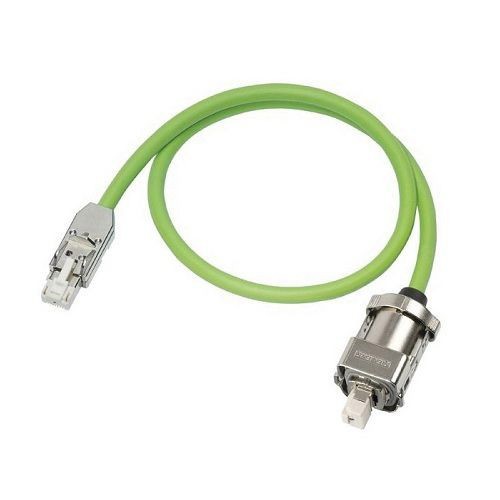

Siemens MOTION-CONNECT® 500 6FX50022DC101CA0 Pre-Assembled Basic Signal Cable With 24 VDC Core, 30 VAC, Bare Copper Conductor, 20 m L

Selected Siemens MOTION-CONNECT® 500 6FX50022DC101CA0 Pre-Assembled Basic Signal Cable With 24 VDC Core, 30 VAC, Bare Copper Conductor, 20 m L
Siemens MOTION-CONNECT® 500 6FX50022DC101CA0 Pre-Assembled Basic Signal Cable With 24 VDC Core, 30 VAC, Bare Copper Conductor, 20 m L

Short Description

MOTION-CONNECT® cables and connections are the ideal solution for all those who wish to use high quality, system tested power and signal cables on their machine. Our solution is characterized by lots of highly convincing features, such as an EMC compatibility test of the complete system (controller, inverter, motor and cables), vibration resistance and all relevant functions. MOTION-CONNECT® cables provides state of the art cables and connections (DRIVE-CLiQ, SPEED-CONNECT) for your motion control systems.

Specification

Temperature Rating
-4 to 176 deg F
Type
Pre-Assembled
Voltage Rating
30 VAC
Application
Production machines and machining centers with permanently routed cable or cable drags and are used whenever components with DRIVE-CLiQ connection must meet high requirements such as mechanical stress and oil resistance
Standard & Approvals
UL 2502, CSA C22.2-N.210.2-M90, CE Certified, EN 60811-2-1, EN 60332-1-1, EN 60332-1-3
Minimum Order Qty
1
Order Interval
1
Catalog ID
SIE6FX50022DC101CA0
Conductor Type
Bare Copper
End Style
RJ45 Module End x RJ45 Motor End Connector
Insulation Material
CFC
Jacket Material
PVC
Length
20 m
Outside Diameter
7.1 mm
EANUCC13
4042948662663
Jacket Color
Green
