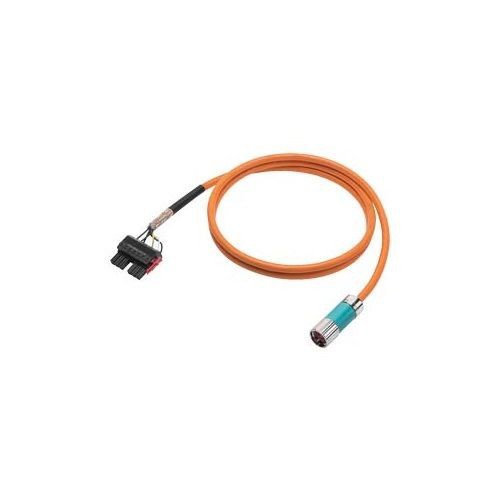

Siemens MOTION-CONNECT® 800 PLUS 6FX80025CN061BA0 Pre-Assembled Basic Power Cable, 600/1000 VAC, (4) 1.5 sq-mm, 10 m L

Selected SIE6FX80025CN061BA0
SIE6FX80025CN061BA0

Documents

Short Description

Power cable for connecting a SIMOTICS M-1PH8 motor with terminal box to a SINAMICS S120 motor module. The synchronous and asynchronous motors are connected to the motor modules or power modules by means of MOTION-CONNECT® power cables. The pre-assembled MOTION-CONNECT® power cables are of high quality and offer safety with problem-free functioning. Depending on the design, the MOTION-CONNECT® power cables are either pre-assembled at one end or at both ends. If pre-assembled power cables are to be installed in a cable carrier in such a way that the connector would inhibit assembly, pre-assembled cables without assembled connector can also be supplied. In this case, the contacts of the cables are crimped and the connector enclosure is supplied separately. After installing the cables, the customer assembles the connector enclosure.

Features

  • Superior quality and system responsibility
  • Without brake core

Specification

Insulation Material
CFC
Jacket Color
Orange
Length
10 m
Number of Conductors
4
Minimum Order Qty
1
Order Interval
1
Catalog ID
SIE6FX80025CN061BA0
Conductor Size
1.5 sq-mm
End Style
M23 SPEED-CONNECT Connector x SINAMICS S120 Booksize MoMo C/D Connector
Type
Pre-Assembled
Voltage Rating
600/1000 VAC
Standard & Approvals
UL 758, CSA C22.2-N.210.2-M90, CE Certified, EN 60811-2-1, EN 60332-1-1, EN 60332-1-3, DESINA
Temperature Rating
-58 to 176 deg F
Outside Diameter
9.5 mm
Jacket Material
PUR
Application
Production machines and machining centers with permanently routed cable or cable drags and for SIMOTICS S-1FT7, S-1FK7, S-1FG1 motors without holding brake, SIMOTICS M-1PH808, M-1PH810 motors with SPEED-CONNECT connector on SINAMICS S120 motor modules in book size format
