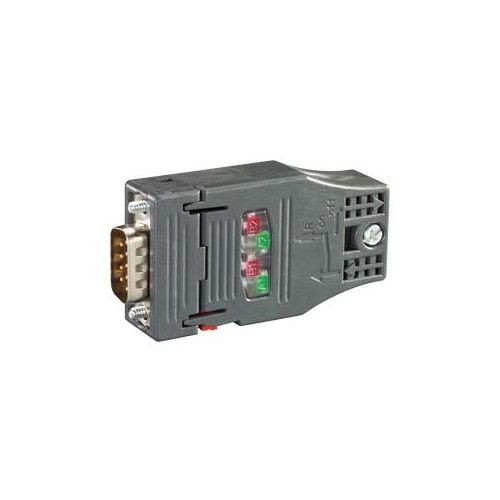

Siemens 6GK15000FC10 Fast Bus Connector, 62 mm H x 16 mm W x 34.5 mm D, For Use With Profibus Nodes to The Profibus Bus Cable
Siemens 6GK15000FC10 Fast Bus Connector, 62 mm H x 16 mm W x 34.5 mm D, For Use With Profibus Nodes to The Profibus Bus Cable
SKU: SIE6GK15000FC10
Manufacturer Part Number: 6GK15000FC10
EAN: 4025515076230
UPC: 662643424447
Features
- 9.6 kb to 12 mb transfer rate
- 180 deg cable outlet, Sub-D 9-pin connection
- Integrated resistor combination that can be selected with slide switch, disconnect function when the resistor is connected, the outgoing bus is isolated terminating resistor
- IP20 degree of protection
- 75% relative humidity, RS 485 plug 180, PB-plug with fast connect connector and axial cable outlet
- Terminating resistor with separating function
- -40 to 70 deg C operating
Specification
| Suitable For Use With | Profibus Nodes to The Profibus Bus Cable |
|---|---|
| Standard & Approvals | UL Listed, cULus Listed |
| EANUCC13 | 4025515076230 |
| Type | Fast |
| Size | 62 mm H x 16 mm W x 34.5 mm D |
