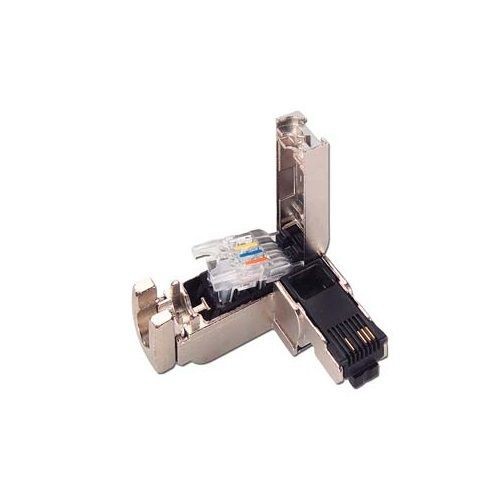

Siemens 6GK19011BB202AB0 Plug Connector, RJ-45 Connector, Cat 5
Siemens 6GK19011BB202AB0 Plug Connector, RJ-45 Connector, Cat 5
SKU: SIE6GK19011BB202AB0
Manufacturer Part Number: 6GK19011BB202AB0
EAN: 4019169403955
UPC: 040892604986
Features
- 10/100 Mbit/sec transfer rate/for industrial Ethernet
- Rugged metal housing and FC connecting method
- 90 deg cable outlet
- IP20 degree of protection
- Integrated cut and clamp contacts for 4 wires TP FC installation cable electrical connection
- For connection to IE FC TP cables 2x2, suitable for fast assembly with the FastConnect system
Specification
| Material | Metallic |
|---|---|
| Mounting Type | Surface |
| Temperature Rating | -40 to 85 deg C |
| Standard & Approvals | UL, cUL Listed |
| Dimensions | 16 mm H x 13.7 mm W x 42 mm D |
| Category Type | Cat 5 |
| Connector Type | RJ45 |
| EANUCC13 | 4019169403955 |
