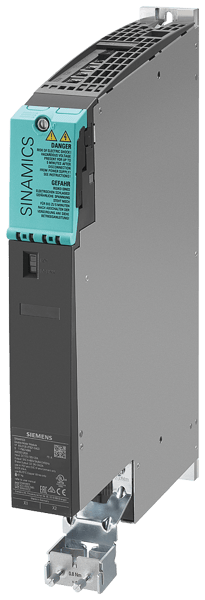

Siemens 6SL31202TE210AD0 SINAMICS S120 3-Phase Double Motor Module, 600 VDC Input, 400 VAC Output, 27 A Output

Selected 6SL31202TE210AD0Siemens 6SL31202TE210AD0 SINAMICS S120 3-Phase Double Motor Module, 600 VDC Input, 400 VAC Output, 27 A Output
6SL31202TE210AD0Siemens 6SL31202TE210AD0 SINAMICS S120 3-Phase Double Motor Module, 600 VDC Input, 400 VAC Output, 27 A Output

Documents

Features

  • 9 A rated, 7.7 A base load, 12 A for S6 duty (40%), 27 A maximum output current

Specification

Specifications
60 dB Sound Pressure, IP20/Open Enclosure
Temperature Rating
32 to 104 deg F
Type
3-Phase Double
Standard & Approvals
WEEE (2012/19/EU), REACH Article No. 33, CE Certified, cULus Listed, SIL 2 According to IEC 61508, PL d According to EN ISO 13849-1, Category 3 According to EN ISO 13849-1
Minimum Order Qty
1
Order Interval
1
Output Voltage
400 VAC
Series
Sinamics S120
Power Dissipation
0.15/0.19 kW
Catalog ID
SIE6SL31202TE210AD0
Output Current
27 A
Input Voltage
600 VDC
Dimensions
14.96 in H x 1.97 in W x 10.63 in D
