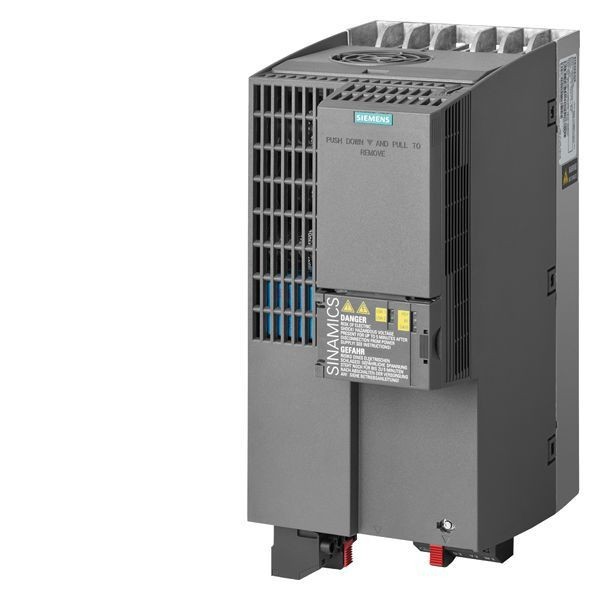

Siemens 6SL32101KE226UP1 SINAMICS G120C Compact AC Variable Frequency Drive, 380 to 480 VAC, 16.5 A, 10 hp, 140 mm W x 203 mm D

Selected 6SL32101KE226UP1Siemens 6SL32101KE226UP1 SINAMICS G120C Compact AC Variable Frequency Drive, 380 to 480 VAC, 16.5 A, 10 hp, 140 mm W x 203 mm D
6SL32101KE226UP1Siemens 6SL32101KE226UP1 SINAMICS G120C Compact AC Variable Frequency Drive, 380 to 480 VAC, 16.5 A, 10 hp, 140 mm W x 203 mm D

Documents

Short Description

The SINAMICS G120C combines an extremely compact design with integrated safety function and a wide range of functions for diverse applications. With seven frame sizes, it covers a power range from 0.55 to 132 kW.

Features

  • High torques at low frequency setpoints are possible thanks to energy-efficient, sensorless vector control
  • Due to the certified safe torque off safety function, which is integrated as standard, additional external components can be omitted
  • All standard bus systems such as PROFINET, EtherNet/IP, PROFIBUS and USS/ Modbus RTU are supported
  • Intuitive series commissioning, cloning function using a SINAMICS G120 smart access Module, BOP-2, IOP-2 or SD card
  • Simple and fast software parameter assignment
  • Full integration of the drives into the TIA portal system diagnostics and the use of the TIA portal library concept guarantee simple reusability of the converters, including their parameters and hardware components
  • Integrated input reactor and EMC filter
  • All frame sizes in side-by-side design without power reduction or current derating
  • Without filter
  • 33 A rated current (LO) input, 24.1 A rated current (HO) input, 25 A rated current (LO) output, 16.5 A rated current (HO) output, 26 A current rated (IN) output, 33 A max output current
  • 15 hp rated power NEC at 480 V (LO) output, 10 hp rated power NEC at 480 V (HO) output

Specification

Type
Compact
Width
140 mm
Standard & Approvals
UL/CUL Listed, CE Certified, C-TICK Certified, EMC 2004/108/EC, Low Voltage Directive 2006/95/EC, WEEE (2012/19/EU)
Depth
203 mm
Horsepower
10 hp
Application
Pumping, Ventilating, Compressing, Moving and Processing Applications
Voltage Rating
380 to 480 VAC
Series
SINAMICS G120C
Height
295 mm
Amperage Rating
16.5 A
Enclosure Type
IP20/Open
EANUCC13
4042948663509
