Siemens SIMATIC NET® 6XV18300EH10 Shielded Standard Bus Cable, 100 VAC, (2, 20 to 1000 m L
Siemens SIMATIC NET® 6XV18300EH10 Shielded Standard Bus Cable, 100 VAC, (2, 20 to 1000 m L
SKU: SIE6XV18300EH10
Manufacturer Part Number: 6XV18300EH10
EAN: 4019169400312
UPC: 662643224474
Features
- 0.0025 dB/m at 9.6 kHz/maximum, 0.004 dB/m at 38.4 kHz/maximum, 0.022 dB/m at 4 MHz/maximum, 0.042 dB/m at 16 MHz/maximum damping ratio per length
- 150 Ohm rated value, 270 Ohm at 9.6 kHz, 185 Ohm at 38.4 kHz, 150 Ohm at 3 MHz to 20 MHz impedance
- 10% of the characteristic impedance at 9.6 kHz, 38.4 kHz, 3 to 20 MHz
- 110 mOhm/m loop resistance per length/maximum
- 9.5 Ohm/km shield resistance per length/maximum
- 28.5 pF/m capacity per length/at 1 kHz

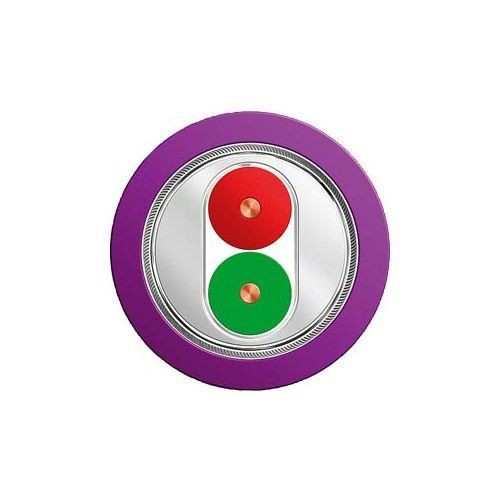

- Overlapped aluminum clad foil, sheathed in a braided screen of tin plated copper wires design of the shield
- 0.65 mm of inner conductor, 2.55 mm of the wire insulation, 5.4 mm of the inner sheath of the cable, 8 mm OD of cable sheath
- PE of the wire insulation, PVC of the inner sheath of the cable and cable sheath
- Red/green of the insulation of data wires, violet of cable sheath
- Oil-resistant according to IEC 60811-2-1 (4 hr/70 deg C) to mineral oil, conditional resistance to grease and to water chemical resistance
- Radiological resistance/to UV radiation resistant
- Silicone-free
Specification
| Insulation Material | Polyethylene |
|---|---|
| Jacket Color | Red/Green |
| Jacket Material | PVC |
| Length | 20 to 1000 m |
| Number of Conductors | 2 |
| Outside Diameter | 8 mm |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | SIE6XV18300EH10 |
| Resistance | 9.5 Ohm |
| Temperature Rating | -40 to 75 deg C |
| Type | Shielded |
| Voltage Rating | 100 VAC |
| Application | For fast and permanent installation applications |
| Standard & Approvals | UL Listed, ETL Listed, cULus Listed, CE Certified |
| EANUCC13 | 4019169400312 |
