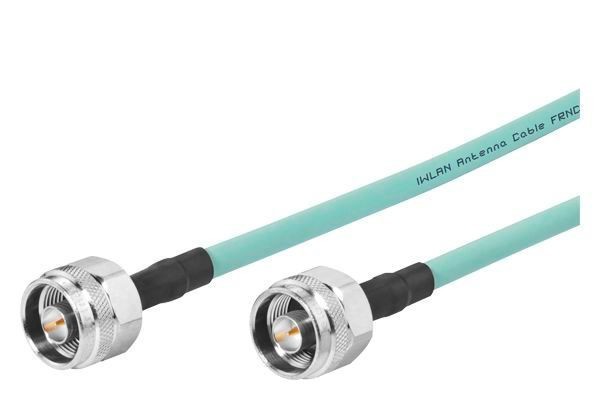

SIMATIC 6XV1875-5AH10 Flexible Pre-Assembled Connection Cable, 1.4 mm Copper Conductor, N-Connect/N-Connect Male/Male Connector, 1 m L Cord
SIMATIC 6XV1875-5AH10 Flexible Pre-Assembled Connection Cable, 1.4 mm Copper Conductor, N-Connect/N-Connect Male/Male Connector, 1 m L Cord
SKU: SIE6XV18755AH10
Manufacturer Part Number: 6XV18755AH10
EAN: 4018359299897
UPC: 662643297751
Documents
Features
- 0.89 dB/m damping ratio per length
- 50 Ohm impedance
- 2-electrical cores
- 80 N maximum tensile load
- Braided shield made of tin plated copper wires shield design
- -40 to 80 deg C operating
- Flame resistant
- Chemical resistance to mineral oil
- Net N-connect male/male connection preassembled cable
Specification
| Series | 6XV |
|---|---|
| Size | 12 in L x 6 in W x 1/4 in H |
| Suitable For Use With | 2RCOAX Segment, IWLAN and Mobile Radio |
| Temperature Rating | -40 to 80 deg C |
| Type | Flexible |
| Standard & Approvals | cULus Listed |
| Cable Length | 1 m |
| EANUCC13 | 4018359299897 |
