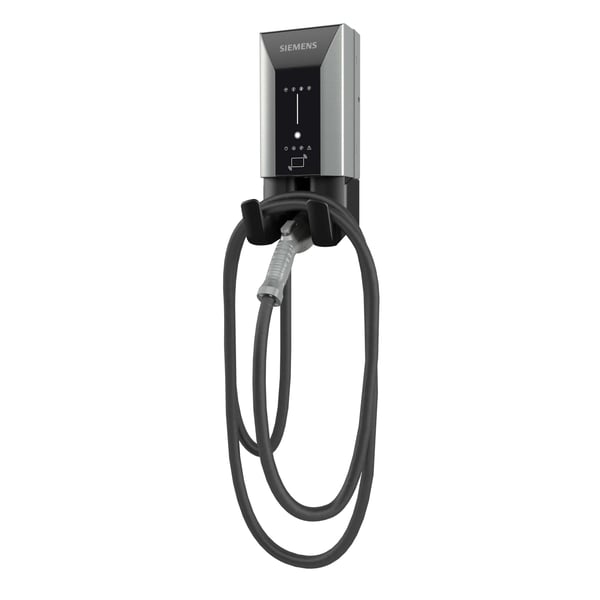

Siemens VersiCharge™ 8EM1312-5CF18-0FA3 Level 2 AC Charger, 208 to 240 VAC, 48 A, 1 ph Phase, 6 AWG, 8 AWG Wire, NEMA 4 Enclosure
Siemens VersiCharge™ 8EM1312-5CF18-0FA3 Level 2 AC Charger, 208 to 240 VAC, 48 A, 1 ph Phase, 6 AWG, 8 AWG Wire, NEMA 4 Enclosure
SKU: SIE8EM13125CF180FA3
Manufacturer Part Number: 8EM1312-5CF18-0FA3
UPC: 195125043695
Features
- Silver metallic (Pantone 10077), black holster
Specification
| Type | Level 2 |
|---|---|
| Voltage Rating | 208 to 240 VAC |
| Wire Size | 6 AWG, 8 AWG |
| Application | For electric vehicle charging station |
| Standard & Approvals | FCC Part 15.247, FCC Part 15B, FCC Part 15C, REACH Article 33, UL 1998, UL 2231-1/CSA C22.2 No.281.1/NMX-J-668-1, UL 2231-2/CSA C22.2 File No. 281.2/NMX-J-668/2-ANCE, UL 2251/CSA C22.2 No.282/NMX-J-678-ANCE, UL 991, UL 2594/CSA C22.2 File No. 280/NMX-J-677-ANCE, WEEE 2012/19/EU |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 48 A |
| Catalog ID | SIE8EM13125CF180FA3 |
| Connection Type | J1772 |
| Enclosure Type | NEMA 4 |
| Insulation | Universal |
| Mounting Type | Wall |
| Operating Temperature | -31 to 122 deg F |
| Phase | 1 ph |
