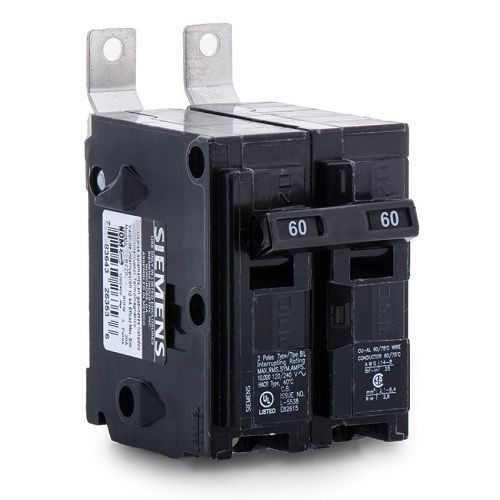

Siemens B260 Type BL Molded Case Circuit Breaker, 120/240 VAC, 60 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip

Selected Siemens B260 Type BL Molded Case Circuit Breaker, 120/240 VAC, 60 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
Siemens B260 Type BL Molded Case Circuit Breaker, 120/240 VAC, 60 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip

Documents

Short Description

Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breakers operating handle restores the circuit.

Features

  • Sense when an over current occurs
  • Measure the amount of over current
  • Act by tripping quickly enough to prevent damage to itself and associated conductors
  • Mounting with insta-wire
  • 8 to 4 AWG copper, 8 to 2 AWG aluminum wire

Specification

Frequency Rating
60 Hz
Interrupt Rating
10 kA
Mounting Type
Panel
Number Of Poles
2
Phase
1
Temperature Rating
40 deg C
Trip Type
Thermal/Magnetic
Voltage Rating
120/240 VAC
Standard & Approvals
UL 489, HACR Rated
Amperage Rating
60 A
Dimensions
3 in L x 3 in W x 2 in H
Actuator Type
Toggle
Connection Type
Bolt-On
Application
Electrical Distribution Applications
Wire Size
8 to 4 AWG, 8 to 2 AWG
Type
Type BL
