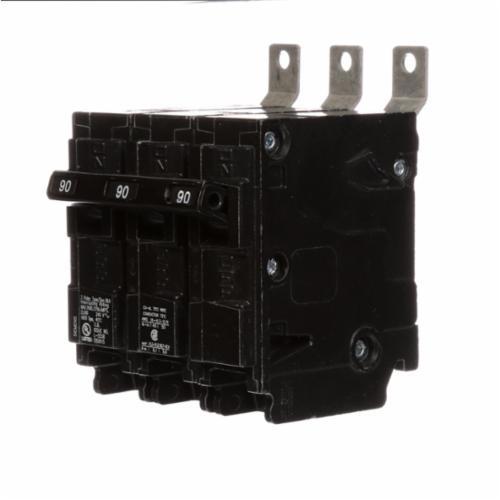

Siemens B390H Type BLH Low Voltage Molded Case Circuit Breaker, 240 VAC, 90 A, 22 kA Interrupt, 3 Poles, Thermal/Magnetic Trip

Selected B390HSiemens B390H Type BLH Low Voltage Molded Case Circuit Breaker, 240 VAC, 90 A, 22 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
B390HSiemens B390H Type BLH Low Voltage Molded Case Circuit Breaker, 240 VAC, 90 A, 22 kA Interrupt, 3 Poles, Thermal/Magnetic Trip

Documents

Short Description

Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breakers operating handle restores the circuit.

Features

  • Sense when an over current occurs
  • Measure the amount of over current
  • Act by tripping quickly enough to prevent damage to itself and associated conductors
  • Mounting with insta-wire
  • 4 to 1/0 AWG copper, 2 to 1/0 AWG aluminum wire

Specification

Frequency Rating
60 Hz
Interrupt Rating
22 kA
Mounting Type
Panel
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Actuator Type
Toggle
Amperage Rating
90 A
Catalog ID
SIEB390H
Connection Type
Bolt-On
Dimensions
3 in L x 3 in W x 4 in H
Phase
3
Temperature Rating
40 deg C
Trip Type
Thermal/Magnetic
Type
Type BLH Low Voltage
Voltage Rating
240 VAC
Wire Size
4 to 1/0 AWG, 2 to 1/0 AWG
Application
Electrical Distribution Applications
Standard & Approvals
UL 489, HACR Rated
