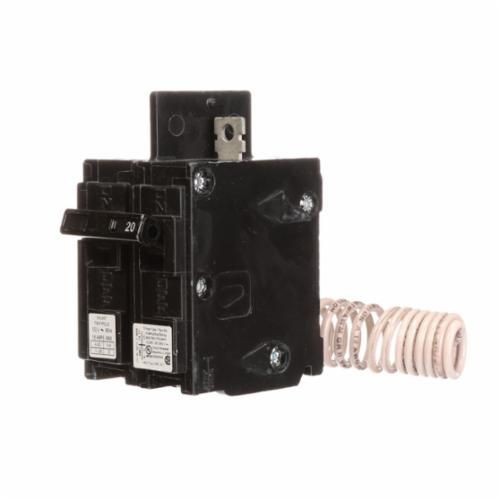

Siemens BQ1B02000S01 Type BQ Low Voltage Molded Case Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Poles, Shunt/Thermal Magnetic Trip

Selected BQ1B02000S01Siemens BQ1B02000S01 Type BQ Low Voltage Molded Case Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Poles, Shunt/Thermal Magnetic Trip
BQ1B02000S01Siemens BQ1B02000S01 Type BQ Low Voltage Molded Case Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Poles, Shunt/Thermal Magnetic Trip

Documents

Short Description

Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breakers operating handle restores the circuit.

Features

  • Sense when an over current occurs
  • Measure the amount of over current
  • Act by tripping quickly enough to prevent damage to itself and associated conductors
  • Lug in/lug out with insta-wire
  • 120 VAC shunt trip

Specification

Frequency Rating
50/60 Hz
Interrupt Rating
10 kA
Mounting Type
Panel
Number Of Poles
1
Minimum Order Qty
1
Order Interval
1
Actuator Type
Toggle
Amperage Rating
20 A
Catalog ID
SIEBQ1B02000S01
Color
Black
Connection Type
Bolt-On/Lug-In/Lug-Out
Dimensions
6 in L x 4 in W x 4 in H
Phase
1
Temperature Rating
40 deg C
Trip Type
Shunt/Thermal Magnetic
Type
Type BQ Low Voltage
Voltage Rating
120 VAC
Wire Size
14 to 10 AWG
Application
Electrical Distribution and General Purpose Applications
Standard & Approvals
UL 489
