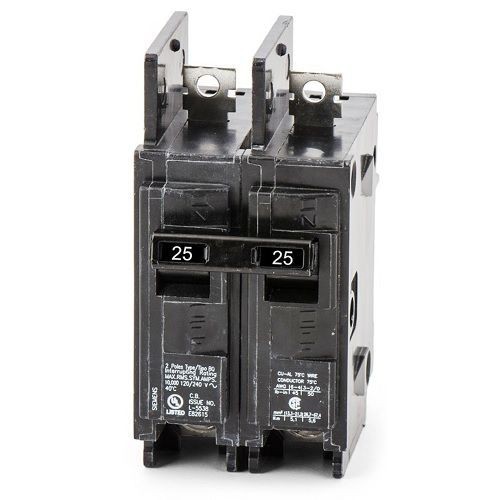

Siemens BQ2B025 Type BQ Low Voltage Molded Case Circuit Breaker, 120/240 VAC, 25 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip

Selected Siemens BQ2B025 Type BQ Low Voltage Molded Case Circuit Breaker, 120/240 VAC, 25 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
Siemens BQ2B025 Type BQ Low Voltage Molded Case Circuit Breaker, 120/240 VAC, 25 A, 10 kA Interrupt, 2 Poles, Thermal/Magnetic Trip

Documents

Short Description

Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breakers operating handle restores the circuit.

Features

  • Sense when an over current occurs
  • Measure the amount of over current
  • Act by tripping quickly enough to prevent damage to itself and associated conductors
  • Lug in/lug out with insta-wire
  • 14 to 6 AWG copper, 12 to 10 AWG aluminum wire

Specification

Frequency Rating
50/60 Hz
Interrupt Rating
10 kA
Mounting Type
Panel
Number Of Poles
2
Phase
1
Temperature Rating
40 deg C
Trip Type
Thermal/Magnetic
Type
Type BQ Low Voltage
Voltage Rating
120/240 VAC
Wire Size
14 to 6 AWG, 12 to 10 AWG
Application
Electrical Distribution and General Purpose Applications
Standard & Approvals
UL 489, HACR Rated
Amperage Rating
25 A
Actuator Type
Toggle
Color
Black
Connection Type
Bolt-On/Lug-In/Lug-Out
Dimensions
3 in L x 2 in W x 4 in H
