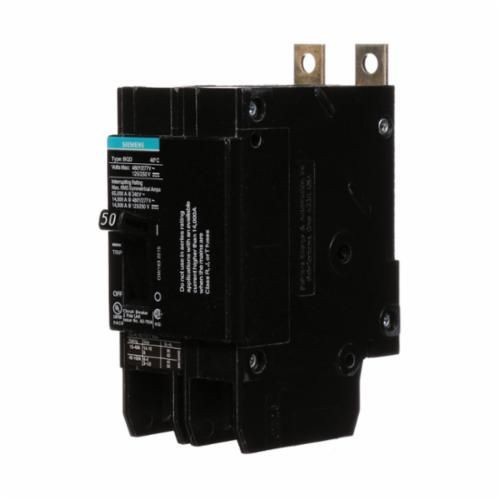

Siemens BQD250 Type BQD Molded Case Circuit Breaker, 277/480 VAC/125/250 VDC, 50 A, 14 kA Interrupt, 2 Poles, Thermal/Magnetic Trip

Selected BQD250Siemens BQD250 Type BQD Molded Case Circuit Breaker, 277/480 VAC/125/250 VDC, 50 A, 14 kA Interrupt, 2 Poles, Thermal/Magnetic Trip
BQD250Siemens BQD250 Type BQD Molded Case Circuit Breaker, 277/480 VAC/125/250 VDC, 50 A, 14 kA Interrupt, 2 Poles, Thermal/Magnetic Trip

Documents

Short Description

Siemens panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panel board busbar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as switching duty ratings for 15 to 20 A and HID ratings from 15 to 50 A.

Features

  • 8 to 1 AWG copper, 6 to 1/0 AWG aluminum wire
  • Non-interchangeable fixed thermal magnetic trip
  • Low tab connection

Specification

Frame
100 A
Frequency Rating
50/60 Hz
Interrupt Rating
14 kA
Mounting Type
Panel
Number Of Poles
2
Minimum Order Qty
1
Order Interval
1
Actuator Type
Toggle
Amperage Rating
50 A
Color
Black
Phase
1
Temperature Rating
40 deg C
Trip Type
Thermal/Magnetic
Voltage Rating
277/480 VAC/125/250 VDC
Standard & Approvals
UL 489, CSA C22.2
Application
Construction Applications
Wire Size
8 to 1 AWG, 6 to 1/0 AWG
Type
Type BQD
Dimensions
4 in L x 3 in W x 2 in H
Connection Type
Low Tab
Catalog ID
SIEBQD250
