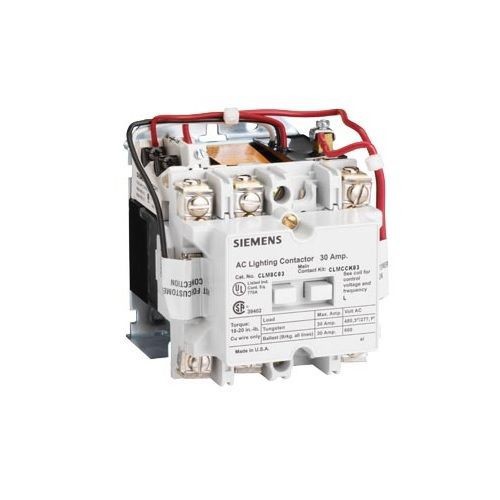

Siemens CLM0C06120 Lighting Contactor, 110/120 VAC V Coil, 30 A, 6NO Contact, 6 Poles
Siemens CLM0C06120 Lighting Contactor, 110/120 VAC V Coil, 30 A, 6NO Contact, 6 Poles
SKU: SIECLM0C06120
Manufacturer Part Number: CLM0C06120
UPC: 783087771291
Documents
Features
- Mechanically held operational mode
- Copper material of the conductor for supply, load side outgoing feeder and at magnet coil
- 75 deg C temperature of the conductor for load-side outgoing feeder maximum permissible, conductor at magnet coil maximum permissible, conductor for supply maximum permissible
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Maximum Load Current | 30 A |
| Mounting Type | Surface |
| Number of Auxiliary Contacts | 4 |
| Number Of Poles | 6 |
| Operating Cycles | 10000000 Cycles Contactor/Typical |
| Terminal | Screw |
| Standard & Approvals | CSA Certified, UL Listed |
| Dimensions | 5.87 in H x 8 in W x 4.86 in D |
| Coil Power Rating | 820 VA Pickup, 80 VA Holding |
| Coil Voltage | 110/120 VAC |
| Connection Type | Screw |
| Contact Configuration | 6NO |
| Contact Type | Non-Combination |
| Enclosure Type | Open |
