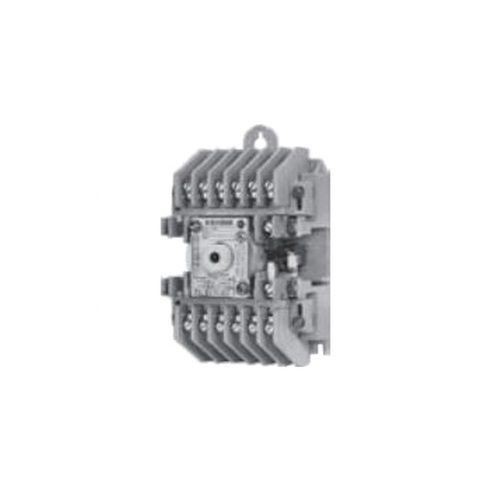

Siemens CLM1D03277 Class CLM Mechanically/Magnetically Held Lighting Contactor, 277 VAC V Coil, 60 A, 3NO-0NC Contact, 3 Poles

Selected CLM1D03277Siemens CLM1D03277 Class CLM Mechanically/Magnetically Held Lighting Contactor, 277 VAC V Coil, 60 A, 3NO-0NC Contact, 3 Poles
CLM1D03277Siemens CLM1D03277 Class CLM Mechanically/Magnetically Held Lighting Contactor, 277 VAC V Coil, 60 A, 3NO-0NC Contact, 3 Poles

Short Description

Siemens Class CLM magnetically and mechanically held lighting contactors are used in applications where it is critical that the contacts remain in the closed position during loss of control power. These contactors do not change state and disconnect power from the load during a loss of control power whether momentary or sustained. That is because the operating coil is not required to be continuously energized. Since the coil is not continuously energized, energy is saved and coil hum is eliminated. This makes the contactor also ideal for applications where quite operation is critical.

Features

  • Used in critical applications where the contacts must remain closed if control power is lost
  • Also used where energy efficient and quiet operation is desired
  • Contacts are rated 20 to 400 A at 600 VAC
  • Rated for tungsten lighting (incandescent filament), ballast lighting (fluorescent, HID, metal halide, mercury vapor, quartz halogen and sodium lamp), resistive and general use loads
  • Full line of factory and field modifications

Specification

Frequency Rating
60 Hz
Maximum Load Current
60 A
Mounting Type
Surface
Number of Auxiliary Contacts
4
Number Of Poles
3
Operating Cycles
10000000 Cycles
Terminal Type
Screw
Standard & Approvals
UL File No. E60310, CSA File No. LR 6535
Dimensions
11 in H x 7 in W x 5 in D
Coil Power Rating
410 VA Pickup, 40 VA Holding
Contact Configuration
3NO-0NC
Contact Type
Non-Combination
Enclosure Type
NEMA 1
Contact Rating
60 A at 277/347/480/600 VAC
Coil Voltage
277 VAC
Application
Schools, Hospitals, Office Buildings, Industrial Plants, Hotels, Shopping Centers, Airports, Stadiums, Resistive Heaters and Indoor General Purpose Applications
Type
Class CLM Mechanically/Magnetically Held
