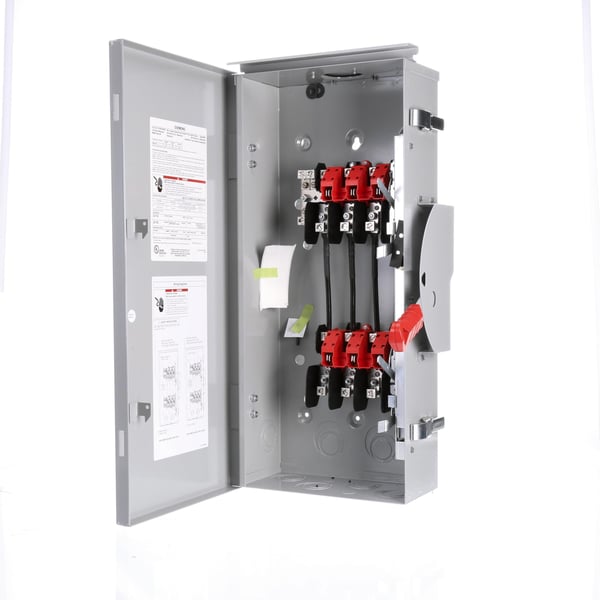

Siemens DTGNF323NR Type VBII Double Throw Enclosed General Duty Non-Fusible Safety Switch With Neutral, 240 VAC, 100 A, 40 hp, 3 Form C 3PDT Contact, 3 Poles

Selected Siemens DTGNF323NR
Siemens DTGNF323NR

Documents

Short Description

Double throw safety switches are intended to transfer loads from one power source to another. All 2 and 3-poles double throw switches are suitable for use as service equipment. All are UL listed. Switches are rated for use on systems up to 10000 A when protected with class h fuses or 100000 A when protected with class r or class T fuses. They can also be used to connect a single source of power to either of two loads. In this application it is necessary to field modify fusible switches so that the fuses are on the load side of the switching mechanism. A cover interlock is provided on all ampere ratings. The operating handle may be padlocked in the off position.

Specification

Dimensions
27.62 in H x 12.18 in W x 6.09 in D
Mounting Type
Surface
Voltage Rating
240 VAC
Horsepower
40 hp
Enclosure Type
NEMA 3R
Terminal Type
Lug
Frequency Rating
60 Hz
Number Of Poles
3
Short Circuit Current Rating
200 kA
Material
Steel
Amperage Rating
100 A
Temperature Rating
-29 to 85 deg C
Type
Type VBII Double Throw Enclosed General Duty Non-Fusible
Insulation Type
Non-Insulated
Contact Form
3 Form C 3PDT
Number of Wires
3
