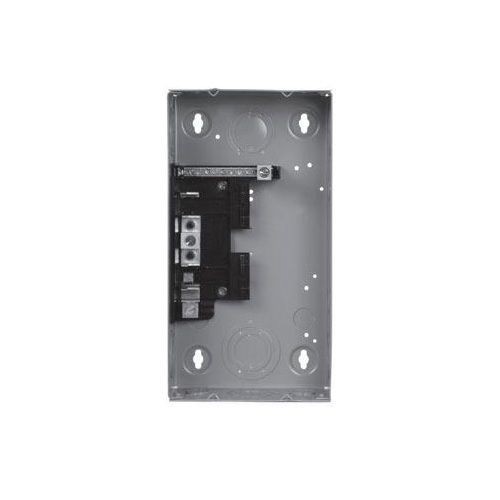

Siemens EQ® E0408ML1125S Single Phase Main Lug Load Center, 120/240 VAC, 125 A, 2 Poles, 100 kA Interrupt
Siemens EQ® E0408ML1125S Single Phase Main Lug Load Center, 120/240 VAC, 125 A, 2 Poles, 100 kA Interrupt
SKU: SIEE0408ML1125S
Manufacturer Part Number: E0408ML1125S
UPC: 783643106208
Features
- Interiors offer removal in sec
- 1-piece busbar construction designed for use only with circuit breakers
- Positive load side circuit breaker hookrails
- With aluminum bus
- Suitable for use as service entrance equipment when a main breaker (125 A maximum) is back-fed in a branch position and used with main breaker retainer clip
- 14 to 2/0 AWG aluminum/copper
Specification
| Interrupt Rating | 100 kA |
|---|---|
| Mounting Type | Surface |
| Number of Circuits | 24 |
| Number Of Poles | 2 |
| Number of Spaces | 4 |
| Voltage Rating | 120/240 VAC |
| Wire Size | 14 to 2/0 AWG |
| Wiring Configuration | 3-Wire |
| Application | For subfeed applications and indoor enclosure |
| Standard & Approvals | UL Listed |
| Amperage Rating | 125 A |
| Dimensions | 12-5/8 in H x 6-5/8 in W x 3-1/2 in D |
| Breaker Mounting | Plug-In |
| Breaker Type | QP |
| Bus Rating | 125 A |
| Enclosure Type | NEMA 1 |
