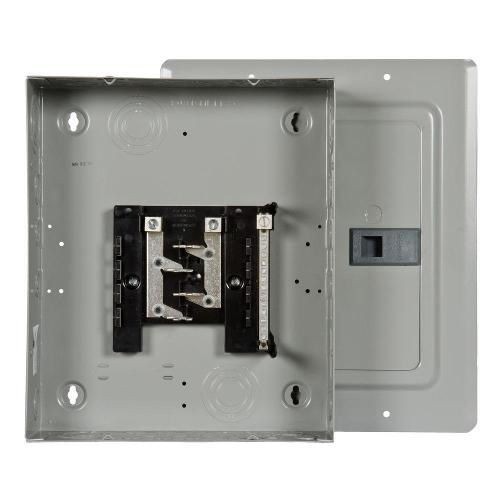

Siemens EQ® E0816ML1125SCU Single Phase Main Lug Load Center, 120/240 VAC, 125 A, 4 Poles, 100 kA Interrupt
Siemens EQ® E0816ML1125SCU Single Phase Main Lug Load Center, 120/240 VAC, 125 A, 4 Poles, 100 kA Interrupt
SKU: SIEE0816ML1125SCU
Manufacturer Part Number: E0816ML1125SCU
UPC: 783643164246
Documents
Features
- Interiors offer removal in sec
- 1-piece busbar construction designed for use only with circuit breakers
- Positive load side circuit breaker hookrails
- With copper bus
- 4 to 2/0 AWG aluminum/copper wire
Specification
| Interrupt Rating | 100 kA |
|---|---|
| Mounting Type | Surface |
| Number Of Poles | 4 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Bus Rating | 125 A |
| Enclosure Type | NEMA 1 |
| Voltage Rating | 120/240 VAC |
| Wiring Configuration | 3-Wire |
| Standard & Approvals | UL Listed |
| Application | For subfeed applications and indoor enclosure |
| Wire Size | 4 to 2/0 AWG |
| Dimensions | 14-3/4 in H x 12-3/8 in W x 3-7/8 in D |
| Catalog ID | SIEE0816ML1125SCU |
| Breaker Type | QP |
| Breaker Mounting | Plug-In |
| Amperage Rating | 125 A |
| Number of Spaces | 8 |
| Number of Circuits | 16 |
