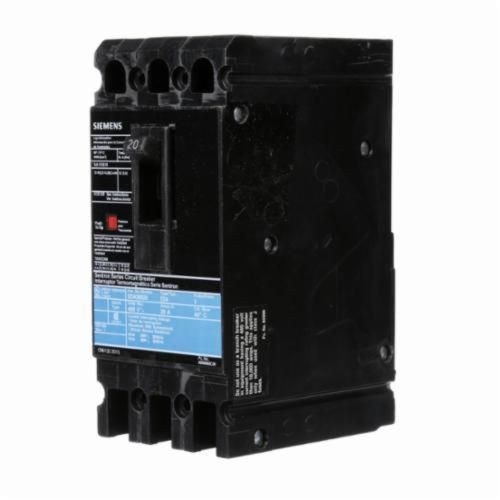

Siemens Sentron™ ED43B020 Type ED4 Low Voltage Molded Case Circuit Breaker, 480 VAC/250 VDC, 20 A, 18 kA Interrupt, 3 Poles, Thermal/Magnetic Trip

Selected ED43B020Siemens Sentron™ ED43B020 Type ED4 Low Voltage Molded Case Circuit Breaker, 480 VAC/250 VDC, 20 A, 18 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
ED43B020Siemens Sentron™ ED43B020 Type ED4 Low Voltage Molded Case Circuit Breaker, 480 VAC/250 VDC, 20 A, 18 kA Interrupt, 3 Poles, Thermal/Magnetic Trip

Documents

Short Description

Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.

Features

  • All ED frame circuit breakers may be reverse connected
  • 14 to 10 AWG copper, 12 to 10 AWG aluminum wire
  • Varying actuator
  • Varying enclosure
  • Blue label

Specification

Frame
ED
Frequency Rating
50/60 Hz
Interrupt Rating
18 kA
Mounting Type
Panel
Number Of Poles
3
Phase
3
Temperature Rating
40 deg C
Trip Type
Thermal/Magnetic
Type
Type ED4 Low Voltage
Voltage Rating
480 VAC/250 VDC
Wire Size
14 to 10 AWG, 12 to 10 AWG
Application
For standard 40 deg C breaker
Standard & Approvals
HACR Rated, UL 489
Amperage Rating
20 A
Dimensions
4 in L x 6 in W x 7 in H
Connection Type
Load Lug
