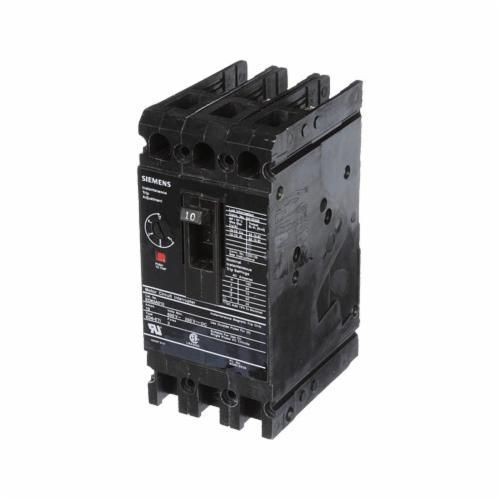

Siemens Sentron™ ED63A010 Type ED6 Low Voltage Molded Case Circuit Breaker, 600 VAC/250 VDC, 10 A, 18 kA Interrupt, 3 Poles, Instantaneous/Thermal Magnetic Trip

Selected ED63A010Siemens Sentron™ ED63A010 Type ED6 Low Voltage Molded Case Circuit Breaker, 600 VAC/250 VDC, 10 A, 18 kA Interrupt, 3 Poles, Instantaneous/Thermal Magnetic Trip
ED63A010Siemens Sentron™ ED63A010 Type ED6 Low Voltage Molded Case Circuit Breaker, 600 VAC/250 VDC, 10 A, 18 kA Interrupt, 3 Poles, Instantaneous/Thermal Magnetic Trip

Documents

Short Description

Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.

Features

  • All ED frame circuit breakers may be reverse connected
  • 30 to 100 A instantaneous trip
  • Standard range ETI breaker

Specification

Frame
ED
Frequency Rating
50/60 Hz
Interrupt Rating
18 kA
Mounting Type
Bolted-On
Number Of Poles
3
Phase
3
Temperature Rating
40 deg C
Voltage Rating
600 VAC/250 VDC
Standard & Approvals
HACR Rated, UL 489
Connection Type
Load Lug
Amperage Rating
10 A
Dimensions
4 in L x 6 in W x 7 in H
Application
For standard range ETI breaker
Type
Type ED6 Low Voltage
Trip Type
Instantaneous/Thermal Magnetic
Trip Range
30 to 100 A
