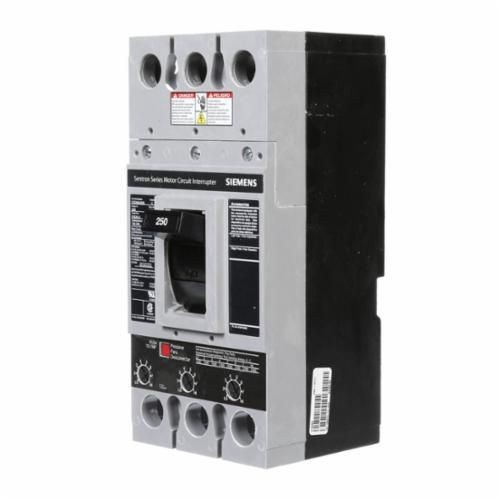

Siemens Sentron™ FXD63A250 Type FXD6 Low Voltage Molded Case Circuit Breaker, 600 VAC, 250 A, 22 kA Interrupt, 3 Poles, Thermal/Magnetic Trip

Selected FXD63A250Siemens Sentron™ FXD63A250 Type FXD6 Low Voltage Molded Case Circuit Breaker, 600 VAC, 250 A, 22 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
FXD63A250Siemens Sentron™ FXD63A250 Type FXD6 Low Voltage Molded Case Circuit Breaker, 600 VAC, 250 A, 22 kA Interrupt, 3 Poles, Thermal/Magnetic Trip

Documents

Short Description

Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.

Features

  • Molded case circuit breakers are used in motor circuits as a disconnecting means and for short circuit protection
  • They should be used in conjunction with motor running, over-current-protection devices and should permit the motor to start without nuisance tripping from motor-inrush current
  • The circuit breaker should have a continuous current rating of not less than 115% of the motor full load current
  • Varying actuator
  • Varying enclosure
  • Blue label
  • Standard range ETI breaker

Specification

Frame
FD
Frequency Rating
50/60 Hz
Interrupt Rating
22 kA
Number Of Poles
3
Phase
3
Temperature Rating
40 deg C
Trip Range
1100 to 2500 A
Trip Type
Thermal/Magnetic
Type
Type FXD6 Low Voltage
Voltage Rating
600 VAC
Application
For standard range ETI breaker
Standard & Approvals
HACR Rated, UL 489
Amperage Rating
250 A
Dimensions
6.9 in L x 5.5 in W x 11.3 in H
Connection Type
Line/Load Lug
