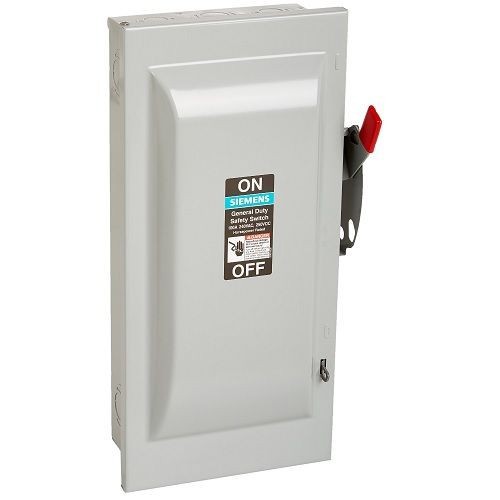

Siemens GF323N Type VBII Enclosed Fusible General Duty Low Voltage Single Throw Safety Switch With Neutral, 240 VAC, 100 A, 7-1/2 hp, 20 hp, TPST Contact, 3 Poles
Siemens GF323N Type VBII Enclosed Fusible General Duty Low Voltage Single Throw Safety Switch With Neutral, 240 VAC, 100 A, 7-1/2 hp, 20 hp, TPST Contact, 3 Poles
SKU: SIEGF323N
Manufacturer Part Number: GF323N
UPC: 783643148147
Documents
Features
- Cover interlock
- Tangential knockouts through 600 A for easy conduit lineup
- Quick make, quick break operating mechanism that ensures positive operation
- Generous wiring gutters that meet or exceed NEC® wire bending space requirements
- Visible blade, double break switching action
- Positive 2 or 3-point mounting
- Highly visible red handle grip
- Informative door labeling which includes replacement parts list
- Handle and cover padlocking provisions
- Side hinged door that opens 180 deg for easier wiring
- A unique enclosure design that adds rigidity and strength, its rolled edge prevents cuts and scrapes to conductors and to installers hands
- Without insulation
Specification
| Frequency Rating | 60 Hz |
|---|---|
| Insulation Type | Non-Insulated |
| Material | Steel |
| Mounting Type | Surface |
| Number Of Poles | 3 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://digitalcontentcenter.compas.siemens-info.com/SIE_VI_Safety_Switch.mp4 |
| Amperage Rating | 100 A |
| Contact Form | TPST |
| Enclosure Type | NEMA 1 |
| Short Circuit Current Rating | 100 kA |
| Temperature Rating | -29 to 85 deg C |
| Terminal Type | Lug |
| Voltage Rating | 240 VAC |
| Application | Indoor Applications |
| Standard & Approvals | UL Listed, UL 98 |
| Phase | 1/3/2025 12:00:00 AM |
| Type | Type VBII Enclosed Fusible General Duty Low Voltage Single Throw |
| Short Circuit Rating | 100 kA |
| Dimensions | 22.08 in H x 10.68 in W x 6.52 in D |
| Catalog ID | SIEGF323N |
| Horsepower | 7-1/2 hp, 20 hp |
