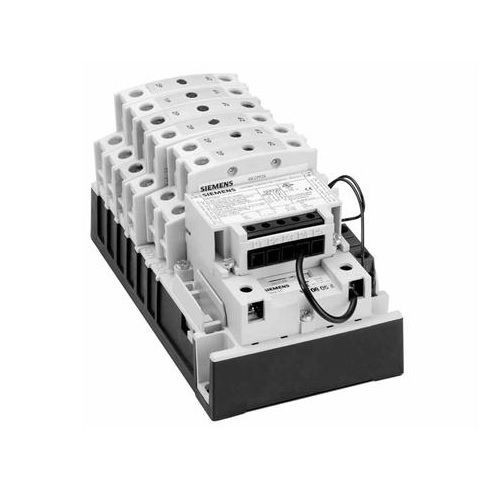

Siemens LCE00C008120A Lighting Contactor, 110/120 VAC V Coil, 30 A, 8NO Contact, 8 Poles
Siemens LCE00C008120A Lighting Contactor, 110/120 VAC V Coil, 30 A, 8NO Contact, 8 Poles
SKU: SIELCE00C008120A
Manufacturer Part Number: LCE00C008120A
UPC: 040892828498
Documents
Features
- Electrically held operational mode
- Copper material of the conductor for supply, load side outgoing feeder and at magnet coil
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Maximum Load Current | 30 A |
| Mounting Type | Surface |
| Number of Auxiliary Contacts | 4 |
| Number Of Poles | 8 |
| Operating Cycles | 100000 Cycles Contactor/Typical |
| Operating Temperature | -25 to 40 deg C |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | SIELCE00C008120A |
| Coil Power Rating | 248 VA Pickup, 24 VA Holding |
| Coil Voltage | 110/120 VAC |
| Connection Type | Screw |
| Contact Configuration | 8NO |
| Contact Type | Non-Combination |
| Dimensions | 7.39 in H x 4.18 in W x 3.86 in D |
| Enclosure Type | Open |
| Terminal | Screw |
