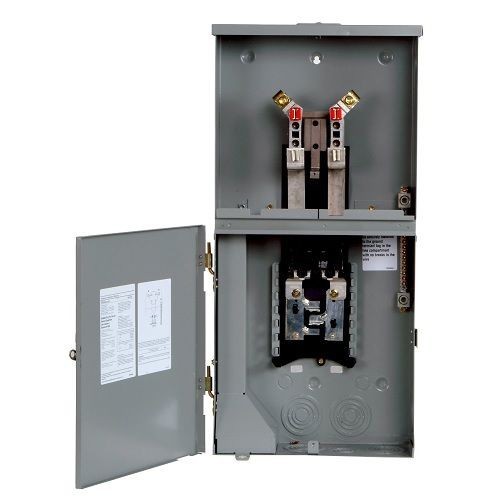

Siemens MC0408B1200T Meter Loadcenter Combination With Lugs, 120/240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
Siemens MC0408B1200T Meter Loadcenter Combination With Lugs, 120/240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
SKU: SIEMC0408B1200T
Manufacturer Part Number: MC0408B1200T
UPC: 783643510616
Features
- 22000 AIC rated
- 4 (1 in) spaces
- NEMA type 3R enclosure with painted, G90 galvanized steel
- Overhead and underground feed applications
- Key hole shaped mounting holes for easy hanging
- Deadfront pull ring
- Captive dead front screw
- Visible neutrals
- Tin plated copper busbar
- Side hinged load center door requires the removal of only one screw to remove door
- Pole mountable
Specification
| Mounting Type | Surface |
|---|---|
| Number of Jaws | 4 |
| Phase | 1 |
| Terminal Type | Feed-Through Lug |
| Voltage Rating | 120/240 VAC |
| Standard & Approvals | UL 67 |
| Amperage Rating | 200 A |
| Cover Type | Ring |
| Enclosure Type | NEMA 3R |
| Feed Type | Bottom/Top |
| Includes | Feed Through Lug |
| Application | Service Entrance Equipment Applications |
