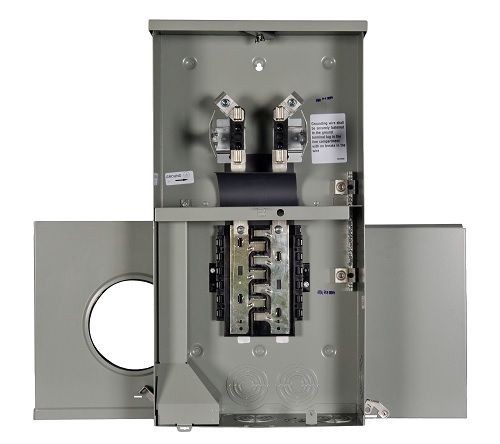

Siemens MC0606L1200R 3-Wire Meter Loadcenter Combination, 120/240 VAC, 200 A, 1 Phase
Siemens MC0606L1200R 3-Wire Meter Loadcenter Combination, 120/240 VAC, 200 A, 1 Phase
SKU: SIEMC0606L1200R
Manufacturer Part Number: MC0606L1200R
UPC: 783643510586
Features
- 22000 AIC rated
- 6 (1 in) spaces
- Load wire bottom or back exit only
- Pad locking provisions on all devices
- Side hinged door removable by backing OUT only one screw
- Suitable for use only as service entrance equipment
- Key hole shaped mounting holes for easy hanging
- Deadfront pull ring
- Captive dead front screw
- Tin plated copper busbar
- Pole mountable
- Tin plated aluminum extrusions 6061-T6 terminal strip
Specification
| Mounting Type | Surface |
|---|---|
| Number of Jaws | 4 |
| Phase | 1 |
| Type | 3-Wire |
| Voltage Rating | 120/240 VAC |
| Application | Service Entrance Equipment Applications |
| Standard & Approvals | UL 67 |
| Amperage Rating | 200 A |
| Dimensions | 27 in H x 14 in W x 5 in D |
| Cover Type | Ringless |
| Feed Type | Bottom/Top |
