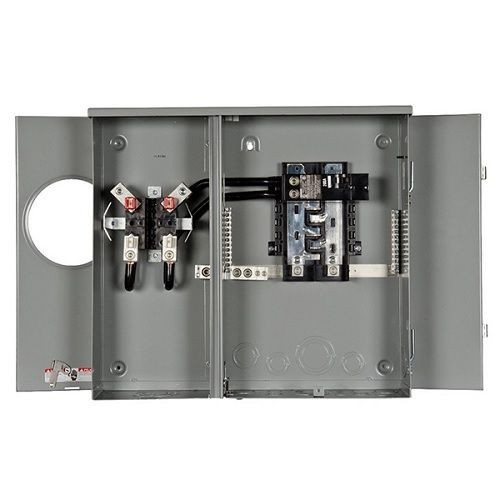

Siemens MC0816B1150RCT 3-Wire Meter Loadcenter Combination, 120/240 VAC, 150 A, 1 Phase
Siemens MC0816B1150RCT 3-Wire Meter Loadcenter Combination, 120/240 VAC, 150 A, 1 Phase
SKU: SIEMC0816B1150RCT
Manufacturer Part Number: MC0816B1150RCT
UPC: 783643510692
Documents
Features
- 22000 AIC rated
- Overhead and underground feed applications
- Pad locking provisions on all devices
- Side hinged door removable by backing OUT only one screw
- Suitable for use only as service entrance equipment
- 08 (1 in) spaces
- 16-circuits
- Side by side construction
- Tin plated aluminum extrusions 6061-T6 terminal strip
Specification
| Mounting Type | Surface |
|---|---|
| Number of Jaws | 4 |
| Phase | 1 |
| Terminal Type | Feed-Through Lug |
| Type | 3-Wire |
| Voltage Rating | 120/240 VAC |
| Application | Service Entrance Equipment Applications |
| Standard & Approvals | UL 67 |
| Amperage Rating | 150 A |
| Cover Type | Ringless |
| Feed Type | Bottom/Top |
| Includes | Feed Through Lug |
| Dimensions | 32 in H x 14 in W x 5 in D |
