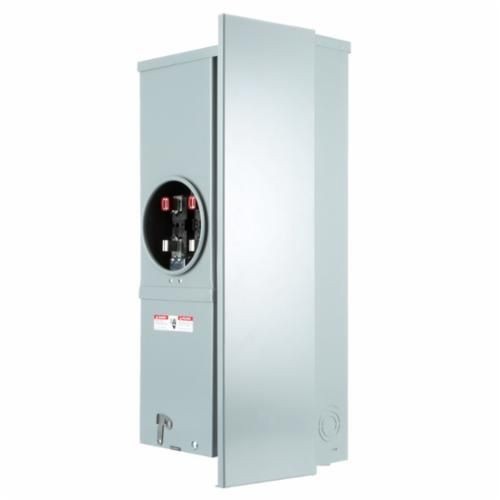

Siemens MM0406L1125ESC Meter Main Combination, 120/240 VAC, 125 A, 1 Phase
Siemens MM0406L1125ESC Meter Main Combination, 120/240 VAC, 125 A, 1 Phase
SKU: SIEMM0406L1125ESC
Manufacturer Part Number: MM0406L1125ESC
UPC: 887621209025
Features
- 4S cutouts
- 1 in cutout
- Tin plated aluminum extrusions 6061-T6 terminal
Specification
| Mounting Type | Surface |
|---|---|
| Number of Jaws | 4 |
| Phase | 1 |
| Voltage Rating | 120/240 VAC |
| Application | Service Entrance Equipment Applications |
| Standard & Approvals | UL 67, EUSERC Approved |
| Feed Type | Overhead/Underground |
| Cover Type | Ring |
| Dimensions | 23.6 in H x 14.5 in W x 5 in D |
| Amperage Rating | 125 A |
