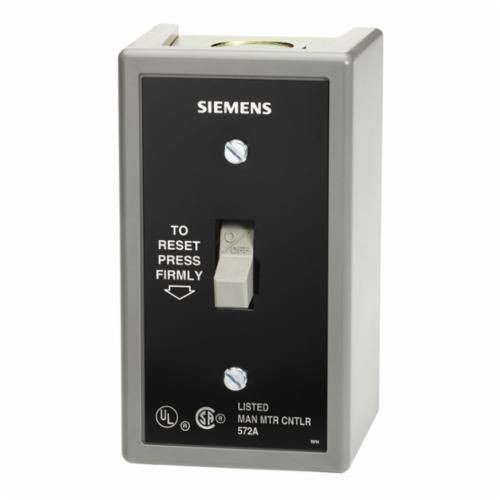

Siemens MMSKG2 3-Phase Class MMS Standard Manual Motor Control Switch, 600 VAC, 20 A, 10 hp Power Rating

Selected MMSKG2Siemens MMSKG2 3-Phase Class MMS Standard Manual Motor Control Switch, 600 VAC, 20 A, 10 hp Power Rating
MMSKG2Siemens MMSKG2 3-Phase Class MMS Standard Manual Motor Control Switch, 600 VAC, 20 A, 10 hp Power Rating

Documents

Short Description

Class MMS and MRS motor starting switches provide manual ON off control of single or three phase AC motors where overload protection is not required or is provided separately. Compact construction and a 600 V rating make these switches suitable for a wide range of industrial and commercial uses. Typical applications include small machine tools, pumps, fans, conveyors and many other types of electrical machinery. They can also be used on non-motor loads such as resistance heating applications.

Features

  • Standard switch
  • Toggle operator
  • 2 hp at 115 VAC, 7-1/2 hp at 230 VAC, 10 hp at 450 to 575 VAC

Specification

Mounting
Surface
Number Of Poles
3
Power Rating
10 hp
Type
3-Phase Class MMS Standard
Voltage Rating
600 VAC
Standard & Approvals
UL Listed
Amperage Rating
20 A
Dimensions
2.44 in W x 4.25 in H
Actuator
Toggle
Enclosure
NEMA 1
