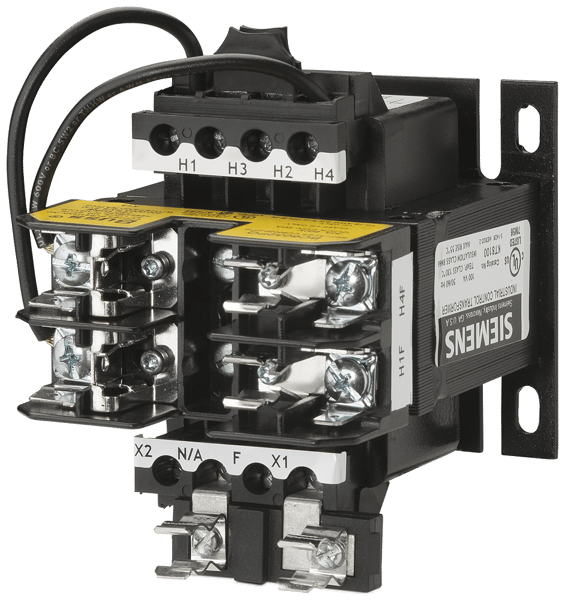

Siemens MT0100C Class MT Control Power Transformer, 120/240 VAC Primary, 24 VAC Secondary, 100 VA Power Rating, 50/60 Hz, 1 Phase
Siemens MT0100C Class MT Control Power Transformer, 120/240 VAC Primary, 24 VAC Secondary, 100 VA Power Rating, 50/60 Hz, 1 Phase
SKU: SIEMT0100C
Manufacturer Part Number: MT0100C
UPC: 754554026824
Documents
Features
- Epoxy encapsulated (50 to 750 VA), epoxy resin impregnated (1 to 5 kVA)
- Completely seals the transformer coils against moisture, dust, dirt and industrial contaminants for maximum protection in hostile and industrial environments
- Fuse clips (most models), factory mounted for integral fusing on the secondary side to save panel space, save wiring time and save the cost of buying an add-on fuse block or kit
- Integrally molded barriers, between terminals and transformer, protect against electrical creepage, up to 30% greater terminal contact area permits low loss connections, extra deep barriers reduce the chance of shorts from frayed leads or careless wiring
- Terminals, molded into the transformer, are difficult to break during wiring, a full quarter-inch of thread on the #10-32 terminal screws prevents stripping and pullout
- Jumpers supplied, two jumper links are standard with all transformers which can be wired for dual primary voltages
- Laminations are built with silicon steel to minimize core losses and to increase optimum performance and efficiency
- Insulation materials are of the highest rating available for the temperature class
- Robust design
- 0.29 A max at 240 VAC
Specification
| Standard & Approvals | cUL Listed, UL Listed, CSA Certified, ANSI Specified |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Frequency Rating | 50/60 Hz |
| Application | For domestic usage |
| Type | Class MT |
| Temperature Rating | 55 deg C |
| Primary Voltage | 120/240 VAC |
| Power Rating | 100 VA |
| Phase | 1 |
| Connection Type | Screw |
| Secondary Voltage | 24 VAC |
| Mounting Type | Slotted |
| Maximum Amperage Rating | 0.29 A |
| Insulation | Epoxy |
| Dimensions | 3.8 in H x 3.38 in W x 4.1 in D |
| Catalog ID | SIEMT0100C |
| Enclosure Type | IP20 |
