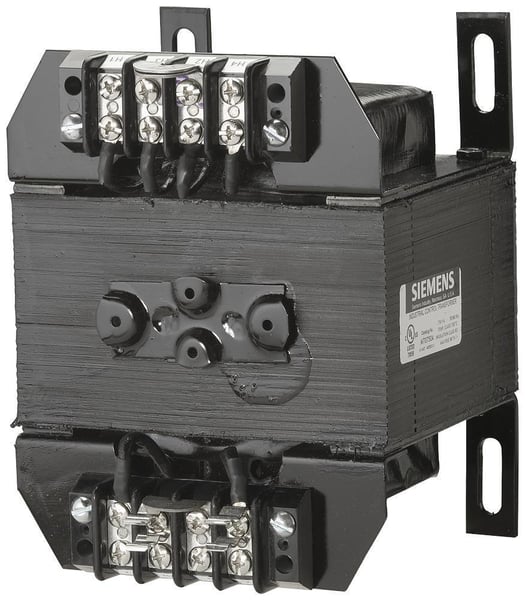

Siemens MT0750M Class MT Control Power Transformer, 240 x 480 VAC Primary, 120 x 240 VAC Secondary, 750 VA Power Rating, 50/60 Hz, 1 Phase
Siemens MT0750M Class MT Control Power Transformer, 240 x 480 VAC Primary, 120 x 240 VAC Secondary, 750 VA Power Rating, 50/60 Hz, 1 Phase
SKU: SIEMT0750M
Manufacturer Part Number: MT0750M
UPC: 754554353227
Documents
Features
- Enclosed coils, completely encloses the transformer coils against moisture, dust, dirt and industrial contaminants for maximum protection in hostile and industrial environments
- Fuse clips, factory mounted for integral fusing on the secondary side to save panel space, save wiring time and save the cost of buying an add on fuse block or kit
- Integrally finger-safe terminals, between terminals and transformer, protect against electrical creepage
- Up to 30% greater terminal contact area permits low loss connections
- Extra deep barriers reduce the chance of shorts from frayed leads or careless wiring
- Terminals molded into the transformer are difficult to break during wiring
- A full quarter-inch of thread on the 8-32 terminal screws prevents stripping and pullout
- Jumpers supplied, two jumper links are standard with all transformers which can be wired for dual primary voltages
- Integrally molded barriers
Specification
| Dimensions | 5.39 in H x 5.25 in W x 7.65 in D |
|---|---|
| Insulation | Class 130 deg C |
| Connection Type | Screw Terminal |
| Power Factor | 20 % |
| Temperature Rating | 55 deg C |
| Mounting Type | Slotted |
| Frequency Rating | 50/60 Hz |
| Secondary Voltage | 120 x 240 VAC |
| Enclosure Type | IP20 |
| Power Rating | 750 VA |
| Primary Voltage | 240 x 480 VAC |
| Phase | 1 |
| Type | Class MT |
